Overview

The Caterpillar™ and Caterpillar™ Micro Arterial Embolization Devices are self-expanding arterial occlusion plugs intended for use in the peripheral vasculature.

The Caterpillar™ and Caterpillar™ Micro Arterial Embolization Devices are self-expanding arterial occlusion plugs. The devices consist of the following components and are indicated to be a permanent implant: cobalt-chrome stem, nickel-titanium fibers, platinum-iridium radiopaque marker bands, and a polyurethane and polyethylene occlusion membrane.

The Caterpillar™ and Caterpillar™ Micro Arterial Embolization Device Systems are packaged as a single unit with the implant, loader, dispenser hoop, detachable delivery wire, and torque tool.

Demonstration Video

Caterpillar™ and Caterpillar™ Micro Arterial Embolization Device Demonstration Video

Features and Benefits

Innovative Dual-action Design for Rapid Occlusion*

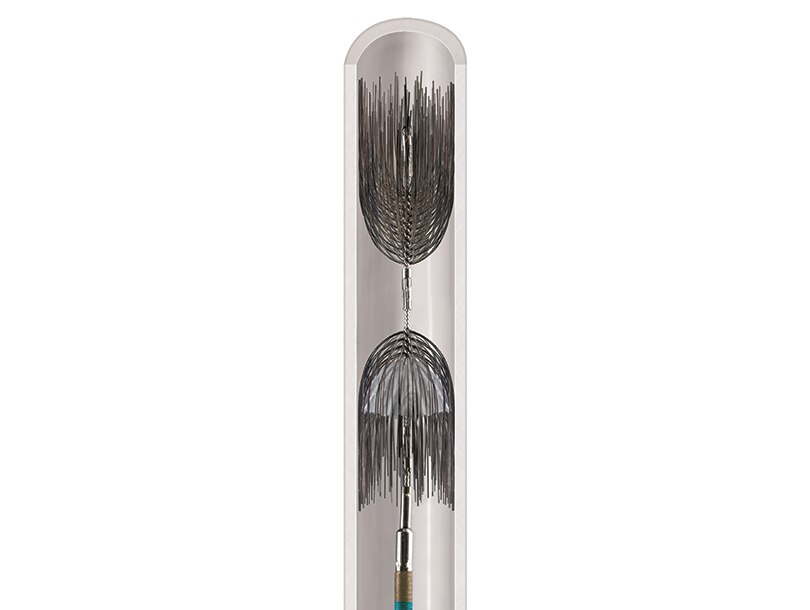

The Caterpillar and Caterpillar Micro Arterial Embolization Devices have an innovative dual-action design with opposing nitinol fiber segments and an occlusion membrane to help support rapid embolization and provide a balance between placement accuracy and deliverability in tortuous anatomy.*

    Size Offerings

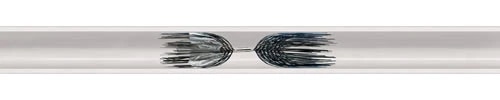

    • Caterpillar™ Micro Arterial Embolization Device (027)

      Treats 1.5 – 4 mm diameter artery
      Maximum indicated length 16 mm

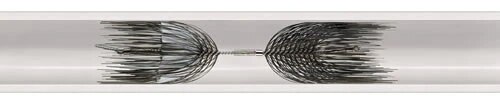

    • Caterpillar™ Arterial Embolization Device (038)

      Treats 3 – 6 mm diameter artery
      Maximum indicated length 26 mm

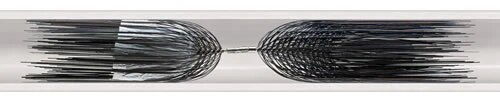

    • Caterpillar™ Arterial Embolization Device (056)

      Treats 5 – 7 mm diameter artery
      Maximum indicated length 37 mm





    *Not to scale

    Webinars

    • Initial Experience: Caterpillar™ Arterial Embolization Device

      An Interventional News webinar for BD

      Featuring:
      Dr. Ripal Gandhi
      Miami Cardiac & Vascular Institute

    • Post GEST Caterpillar Webinar

      Featuring:
      Jafar Golzarian, MD
      Director, Division of Interventional Radiology & Vascular Imaging
      University of Minnesota

      Gary Siskin, MD
      Chair, Department of Radiology
      Albany Medical College

    • Embolization with Caterpillar™ and Caterpillar™ Micro Arterial Embolization Device Systems

      Featuring:
      Ripal T. Gandhi, MD, FSIR, FSVM
      Edward Lee, MD, PhD, FSIR

    Products & Accessories
    Resources
    Literature
    BD's collection of literature on industry and on our offerings gives you information you can use to continue striving for excellence.
    Learn more
    navigation arrow
    Training

    BD offers training resources to help improve your clinical practices as part of our goal of advancing the world of health.

    Learn more
    navigation arrow
    Events

    BD supports the healthcare industry with market-leading products and services that aim to improve care while lowering costs. We host and take part in events that excel in advancing the world of health™.

    Learn more
    navigation arrow
    Case Studies
    BD promotes clinical excellence by providing various resources on best practices, clinical innovations and industry trends in healthcare.
    Learn more
    navigation arrow
    Icon to close the modal

    Caterpillar™ and Caterpillar™ Micro Arterial Embolization Device Safety and Risk Information

    Indications for Use:

    The Caterpillar™ and Caterpillar™ Micro Arterial Embolization Devices are indicated for arterial embolization in the peripheral vasculature. The devices are contraindicated for use in vessels subject to cyclic bending, such as locomotive joints or muscle beds.

    Warnings:

    • Results of preclinical testing suggest that implant locations which expose the device to cyclic bending such as locomotive joints or muscle beds may increase the likelihood of device fracture or migration.
    • The safety and effectiveness of the use of the Caterpillar™ and Caterpillar™ Micro Arterial Embolization Devices in veins, in the heart, in coronary vessels, and in the neurovasculature has not been established.
    • The Caterpillar™ or Caterpillar™ Micro Arterial Embolization Devices are only intended for use in the artery diameters listed in Table 1. Use in artery diameters other than those specified could result in poor occlusion and/or device migration.
    • The Caterpillar™ or Caterpillar™ Micro Arterial Embolization Devices should be advanced and/or manipulated under fluoroscopic guidance. If the device cannot be adequately visualized under fluoroscopy, remove and discard the device and use an alternative device.
    • The Caterpillar™ or Caterpillar™ Micro Arterial Embolization Devices are supplied sterile and non-pyrogenic. The device is sterilized using ethylene oxide (EtO) and is intended for single use only. Do not resterilize and/or reuse this device.
    • Visually inspect the packaging to verify that the sterile barrier is intact. Do not use if the sterile barrier is opened or damaged.
    • After use, this product may be a potential biohazard. Handle and dispose of in accordance with acceptable medical practices and applicable local, state and federal laws and regulations.
    • Do not use this device in patients with a known hypersensitivity to the materials listed below as they may suffer an allergic reaction to this implant. Prior to implantation, patients should be counseled on the materials contained in the device, as well as for allergy/hypersensitivity to these materials: cobalt, chromium, nickel, titanium, platinum, iridium, polyurethane, and polyethylene.
    • The safety and effectiveness of this device has not been evaluated in children or pregnant women.

    Precautions:

    • Check that the device has not been damaged prior to use. Do not use if any damage is visible or if any part of the implant is outside of the loader. If loader or wire kinks or becomes damaged during preparation, do not use the device.
    • The device should only be used by physicians who are trained in endovascular procedures and are familiar with the complications, side effects and hazards of peripheral vascular interventions. The physician should determine appropriate patient compatibility with the Caterpillar™ and Caterpillar™ Micro Arterial Embolization Devices prior to use. In particular, the physician should determine that the product dimensions are appropriate for the implant area.
    • Physicians should exercise clinical judgment in situations that involve use of anticoagulants or antiplatelet drugs before, during and/or after use of the Caterpillar™ and Caterpillar™ Micro Arterial Embolization Devices as their use may slow the rate of occlusion.
    • Exercise care in handling the Caterpillar™ and Caterpillar™ Micro Arterial Embolization Devices to reduce the potential of accidental damage.
    • Do not advance the implant outside of the loader prior to insertion into the delivery catheter.
    • Only use sterile saline to flush the device. Do not use a power injection syringe to inject contrast solution through the Caterpillar™ and Caterpillar™ Micro Arterial Embolization Devices.
    • Verify that the delivery catheter that is used is compatible with the Caterpillar™ and Caterpillar™ Micro Arterial Embolization Devices prior to use.
    • If excessive resistance beyond what would be expected is encountered at any point during advancement of the Caterpillar™ and Caterpillar™ Micro Arterial Embolization Devices through the delivery catheter, stop and remove the device and delivery catheter as one unit/together.
    • Do not advance or retract the Caterpillar™ and Caterpillar™ Micro Arterial Embolization Devices from the loader without attaching the loader via the tuohy borst to the delivery catheter hub.
    • Do not twist or rotate the delivery wire during advancement, because the implant may detach prematurely
    • The Caterpillar™ Arterial Embolization Device can only be re-positioned when the Detachment Zone is still in the delivery catheter (Figure 3). If the Detachment Zone is deployed, but re-positioning is required, retrieve and discard the device. A replacement device must then be used.
    • Caterpillar™ Micro Arterial Embolization Device cannot be repositioned once the distal segment is deployed. If the distal segment is deployed, but repositioning is required, retrieve and discard the device. A replacement device must then be used.
    • Following deployment, use caution to prevent deformation of the membrane or implant position, including with the use of adjunctive therapies.

    Potential Adverse Events:

    Potential patient/device adverse effects which can occur singularly or collectively and may include, but are not limited to, the following:

    • Air embolism
    • Allergic reaction/toxic effects
    • Complications requiring surgical reintervention such as device or component retrieval
    • Death
    • Embolism
    • Fracture and/or detachment of components
    • Fever
    • Foreign material embolic event
    • Hemolysis
    • Hemorrhage
    • Implant malposition/misalignment
    • Migration of the implant
    • Nausea and vomiting
    • Occlusion of unintended vessel
    • Pain
    • Recanalization
    • Residual flow
    • Sepsis, infection, and/or inflammation
    • Stroke
    • Tissue ischemia and infarction
    • Vascular access site complication
    • Vasospasm
    • Vessel trauma including perforation, rupture, or extravasation

    Please consult package insert for more detailed safety information and instructions for use. BD and the BD logo are trademarks of Becton, Dickinson and Company or its affiliates. ©2021 BD. All rights reserved. BD, Tempe, AZ, USA 1-800-321-4254 | www.bd.com | 850 W Rio Salado Parkway Tempe AZ, 85281

    BD-41011

    References

    1 The marker to marker length is the distance between the most distal radiopaque marker band to the most proximal radiopaque marker band.

    2 The maximum deployed length is the length from the distal fiber tips to the proximal fiber tips in the minimum target artery diameter.

    3 Detailed list of compatible delivery catheters can be found in the product labels and inserts.

    * In an arterial ovine Good Laboratory Practice (GLP) study with devices implanted according to labeled vessel diameters, full occlusion at 10 minutes was achieved with all Caterpillar™ and Caterpillar™ Micro Arterial Embolization Devices (14/14). Full occlusion defined as no perfusion – no antegrade flow beyond point of occlusion. Placement accuracy and track forces were measured through pre-clinical bench studies using either an anatomical splenic artery or right gastric artery model. Pre-clinical data and bench testing may not be indicative of clinical performance. Different test methods may yield different results. Data on file, Bard Peripheral Vascular, Inc.

    Please consult Instructions for Use for product indications for use, contraindications, warnings, precautions, complications, adverse events and detailed safety information.

    BD-40396
