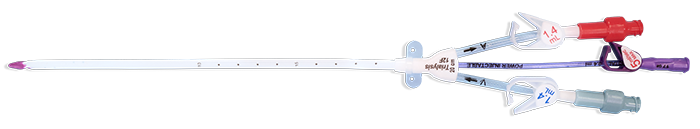

Power-Trialysis™ Slim-Cath™ Short-Term Dialysis Catheter
Contact Us navigation arrow
Background Image
Loading
tabs dropdown arrow

Highlights

A smaller-sized catheter with power injection, improved kink-resistance, and the same flow rates (at pressures under 250 mm Hg) as the original Power-Trialysis™ catheter.1

true
Card Image
Key Benefit

A small catheter is a powerful solution for acute dialysis.

The Power-Trialysis™ Slim-Cath™ 12 Fr triple lumen short-term dialysis catheter performs every bit as well as the original Power-Trialysis™ 13 Fr catheter­—it just comes in a smaller size.1

Portfolio

BD offers a full line of acute dual and triple lumen dialysis catheters. Adding the Power-Trialysis™ Slim-Cath™ catheter to this product portfolio provides clinicians more options to meet patient needs.

  • Flexibility

    • The oval shaft demonstrated better kink resistance than competitive triple lumen dialysis catheters.1
    • The thermosensitive polyurethane catheter shaft provides stiffness during insertion but softens at body temperature.
  • Utility

    • The third 17 gauge power- injectable lumen exits distal to the dialysis lumens, is easily identifiable, and provides additional access for multiple therapies.
  • Reliability

    • The Power-Trialysis™ Slim-Cath™ catheter reliably demonstrated flow rates of up to 400 mL/min and recirculation of less than 2% on average through simulated testing.1
    • The full max barrier precaution trays enable clinicians to facilitate compliance with federal regulations and guidelines.
Features and Benefits

Optimal Performace Feature1

  • Kink-resistant catheter design: To minimize kinking while providing stiffness for insertion.
  • Symmetrical tip: Allows for recirculation of less than 2% on average in both forward and reverse directions.
  • Flow rate:Of up to 400 mL/min at lesser pressure than competitive TL dialysis catheter
Designed for performance
Designed for performance
  • Catheter length options : Catheters are available in 12.5 cm, 15 cm, 20cm, 24 cm, and 30 cm (lengths vary by catheter configuration)



  • Kidney-shaped lumen design: To maximize flow and surface area, permits higher flows than competitive design1
  • Dialysis (12 Ga) Lumens: Indicated for hemodialysis, hemoperfusion, and apheresis
  • Third (17 Ga) Lumen: Exits distal to the dialysis lumens and is indicated for intravenous therapy including infusion of medication and blood draws, power injection of contrast media, and central venous pressure monitoring
Kink characteristics
Kink characteristics
  • Power-Trialysis™ Slim-Cath™ : Catheter demonstrated ~46% less kink diameter (Kd) than its competitor1
  • 12 Fr. oval catheter shaft : Designed for excellent kink resistance
  • More kink resistant: Than competitive 12 Fr. triple lumen dialysis catheters1

Note: The product images shown are for illustrative purposes only and not accuracy.

Note: The product images shown are for illustrative purposes only and not accuracy.

Maximal Barrier Trays

Feature a full body drape (70" x 110"), surgical gown, and safety components.

Maximal barrier precautions help you comply with the latest guidelines from:

  • Centers for Disease Control (CDC) Guidelines
  • Institute for Healthcare Improvement's (IHI) 5 Million Lives Campaign
  • Occupational Safety & Health Administration (OSHA) Guidelines.
Products & Accessories
  • product-image

    Power-Trialysis™ Slim-Cath™ catheter, 24 cm, Curved Extension Legs, Full Max Barrier Tray

  • product-image

    Power-Trialysis™ Slim-Cath™ catheter, 20 cm, Curved Extension Legs, Full Max Barrier Tray

  • product-image

    Power-Trialysis™ Slim-Cath™ catheter, 15 cm, Curved Extension Legs, Full Max Barrier Tray

  • product-image

    Power-Trialysis™ Slim-Cath™ catheter, 12.5 cm, Curved Extension Legs, Full Max Barrier Tray

  • product-image

    Power-Trialysis™ Slim-Cath™ catheter, 20 cm, Curved Extension Legs, Basic Kit

  • product-image

    Power-Trialysis™ Slim-Cath™ catheter, 20 cm, Curved Extension Legs, Basic Kit

  • product-image

    Power-Trialysis™ Slim-Cath™ catheter, 15 cm, Curved Extension Legs, Basic Kit

  • product-image

    Power-Trialysis™ Slim-Cath™ catheter, 12.5 cm, Curved Extension Legs, Basic Kit

  • product-image

    Power-Trialysis™ Slim-Cath™ catheter, 30 cm, Straight Extension Legs, Full Max Barrier Tray

  • product-image

    Power-Trialysis™ Slim-Cath™ catheter, 24 cm, Straight Extension Legs, Full Max Barrier Tray with GuardIVa® Dressing

  • product-image

    Power-Trialysis™ Slim-Cath™ catheter, 20 cm, Straight Extension Legs, Full Max Barrier Tray

  • product-image

    Power-Trialysis™ Slim-Cath™ catheter, 15 cm, Straight Extension Legs, Full Max Barrier Tray with GuardIVa® Dressing

  • product-image

    Power-Trialysis™ Slim-Cath™ catheter, 30 cm, Straight Extension Legs, Basic Kit

  • product-image

    Power-Trialysis™ Slim-Cath™ catheter, 24 cm, Straight Extension Legs, Basic Kit

  • product-image

    Power-Trialysis™ Slim-Cath™ catheter, 20 cm, Straight Extension Legs, Basic Kit

  • product-image

    Power-Trialysis™ Slim-Cath™ catheter, 15 cm, Straight Extension Legs, Basic Kit

Resources

Kit Components

Description Tray Kit
Catheter 1 1
Adhesive Dressing 1 1
Aspiration Device (Filter Straw) 2 0
Attachable Suture Wing 1 1
Bouffant Cap 1 0
End Cap 3 3
Drape, Body, Fenestrated 70 in. x 110 in. 1 0
Dualator® Vessel Dilator 11-13 Fr. 1 1
Dualator® Vessel Dilator 12-14 Fr. 1 1
Gauze pad 10 cm x 10 cm (4 in. x 4 in.) 6 0
Gloves 1 0
Gown 1 0
Introducer Needle, 18 Ga. x 7 cm (2.75 in.) 0 1
Lidocaine HCI 1%, 5 ml Ampule 1 0
Mask 2 0
Needle Holder 1 0
Safety Introducer Needle, 18 Ga. x 7 cm (2.75 in.) 1 0
Safety Needle, 22 Ga. x 4 cm (1.5 in.) 1 0
Safety Needle, 25 Ga. x 1.6 cm (0.625 in.) 1 0
Safety Scalpel 1 0
Sodium Chloride (Saline) 0.9% 10 ml Ampule 3 0
StruXure™ Guidewire J-tip 70 cm x 0.89 mm (0.035 in.) 1 1
Suture with Curved Needle 1 0
Syringe, Luer Lock, 12 ml 3 0
Syringe, Luer Slip, 6 ml 2 0
Syringe, Luer Lock, 6 ml 1 0
Frequently Asked Questions

The rate of recirculation is less than 2% on average in both the forward and reverse directions, when tested in vitro.1

It comes in both the straight and a curved extension version but not an Alphacurve® catheter.

The connectors for the dialysis lumens (blue and red) are acetal, the power injection lumen connector (purple), and the extension legs are polyurethane. The catheter shaft and tip are made from Thermosensitive Bodysoft polyurethane which softens at body temperature.

Up to 400 mL/min1

No, the BD repair kit is not indicated for the Power-Trialysis Slim-Cath catheter.

Each kit includes an 11–13 Fr. and a 12–14 Fr. Dualator Vessel Dilator. Placers should dilate to the largest portion of each Dualator to allow the catheter to more easily enter the tissue and vessel. Two dilators are provided to progressively widen the insertion site.

A surgical gown.

The Power-Trialysis Slim-Cath catheter is compatible with the following agents: Povidone iodine, 0.55% sodium hypochlorite solution, chlorhexidine gluconate 4%, chlorhexidine gluconate 2% solution, dilute aqueous sodium hypochlorite, hydrogen peroxide, and bacitracin zinc ointments in petrolatum bases.

The catheter tip must be in the lower superior vena cava for optimal performance. If placed femorally, the catheter tip should be placed in the inferior vena cava to minimize recirculation. Catheters greater than 24 cm are intended for femoral vein insertion. CAUTION: For jugular and subclavian insertion, the catheter tip should not be located in the right atrium. WARNING: Verification of the catheter tip location must be confirmed by x-ray.

The physician will determine this based on the patient needs. The Power-Trialysis Slim-Cath catheter can be used for other therapies concurrent with dialysis The third lumen is completely independent from the two dialysis lumens and is indicated for power injection of contrast media, and central venous pressure monitoring; and can be used for blood draws and medication delivery without the need for a separate access.

Contrast-induced nephropathy is most commonly defined as acute renal failure occurring within 48 hours of exposure to intravascular radiographic contrast material that is not attributable to other causes.

The third lumen should be locked per hospital protocol for central lines. The priming volume is printed on the extension leg and is also available in the instructions for use (IFU).

The largest guidewire that may be used is a 0.035 in (0.89 mm).

The catheter shaft is oval for two reasons. First, the oval shaft improves the catheter’s kink resistance. Second, the oval shape allows for the internal kidney-shaped lumen design which provides high flow rates of 400 mL/min1 The wide axis of the catheter is 15 Fr., while the short axis is 10 Fr. The French size of the catheter is the average of those numbers, 12 Fr.

The main difference is a smaller French size. The Power-Trialysis Slim-Cath catheter is a 12 Fr. and the Power-Trialysis catheter is a 13 Fr. According to BD's internal market research, some physicians prefered a smaller sized catheter that could still flow at a high rate. A smaller catheter increases our product offering to accommodate varying vascular needs.

This warning was added to ensure a syringe was not used for blood infusions to prevent high pressures. Blood transfusions through a blood pump are allowed.

The rate of recirculation is less than 2% on average in both the forward and reverse directions, when tested in vitro.1

It comes in both the straight and a curved extension version but not an Alphacurve® catheter.

The connectors for the dialysis lumens (blue and red) are acetal, the power injection lumen connector (purple), and the extension legs are polyurethane. The catheter shaft and tip are made from Thermosensitive Bodysoft polyurethane which softens at body temperature.

Up to 400 mL/min1

No, the BD repair kit is not indicated for the Power-Trialysis Slim-Cath catheter.

Each kit includes an 11–13 Fr. and a 12–14 Fr. Dualator Vessel Dilator. Placers should dilate to the largest portion of each Dualator to allow the catheter to more easily enter the tissue and vessel. Two dilators are provided to progressively widen the insertion site.

A surgical gown.

The Power-Trialysis Slim-Cath catheter is compatible with the following agents: Povidone iodine, 0.55% sodium hypochlorite solution, chlorhexidine gluconate 4%, chlorhexidine gluconate 2% solution, dilute aqueous sodium hypochlorite, hydrogen peroxide, and bacitracin zinc ointments in petrolatum bases.

The catheter tip must be in the lower superior vena cava for optimal performance. If placed femorally, the catheter tip should be placed in the inferior vena cava to minimize recirculation. Catheters greater than 24 cm are intended for femoral vein insertion. CAUTION: For jugular and subclavian insertion, the catheter tip should not be located in the right atrium. WARNING: Verification of the catheter tip location must be confirmed by x-ray.

The physician will determine this based on the patient needs. The Power-Trialysis Slim-Cath catheter can be used for other therapies concurrent with dialysis The third lumen is completely independent from the two dialysis lumens and is indicated for power injection of contrast media, and central venous pressure monitoring; and can be used for blood draws and medication delivery without the need for a separate access.

Contrast-induced nephropathy is most commonly defined as acute renal failure occurring within 48 hours of exposure to intravascular radiographic contrast material that is not attributable to other causes.

The third lumen should be locked per hospital protocol for central lines. The priming volume is printed on the extension leg and is also available in the instructions for use (IFU).

The largest guidewire that may be used is a 0.035 in (0.89 mm).

The catheter shaft is oval for two reasons. First, the oval shaft improves the catheter’s kink resistance. Second, the oval shape allows for the internal kidney-shaped lumen design which provides high flow rates of 400 mL/min1 The wide axis of the catheter is 15 Fr., while the short axis is 10 Fr. The French size of the catheter is the average of those numbers, 12 Fr.

The main difference is a smaller French size. The Power-Trialysis Slim-Cath catheter is a 12 Fr. and the Power-Trialysis catheter is a 13 Fr. According to BD's internal market research, some physicians prefered a smaller sized catheter that could still flow at a high rate. A smaller catheter increases our product offering to accommodate varying vascular needs.

This warning was added to ensure a syringe was not used for blood infusions to prevent high pressures. Blood transfusions through a blood pump are allowed.

true
Reference

1 Based on simulated testing. May not be indicative of actual clinical performance. Verification Testing Competitive Comparisons, M458-034-005, 2016 , 3-point Bend Comparison Testing Performance Results, M506-013-001, 2015. BD, Inc., Salt Lake City, UT.

Please go to the product specific page to find the Safety Information link for inserts and labels, as well as indications, directions for use, contraindications, hazards, warnings, and precautions.
