WavelinQ™ EndoAVF System

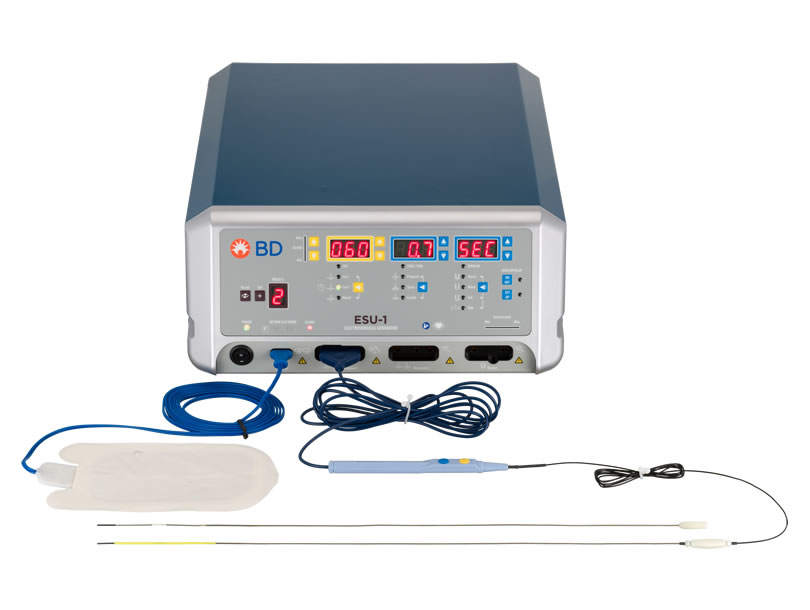

 Consists of two 4 French (4F) single-use, disposable, magnetic, hydrophilic coated catheters — a venous catheter and an arterial catheter. It is used with an Electrosurgical Unit (ESU) and Electrosurgical Pencil.

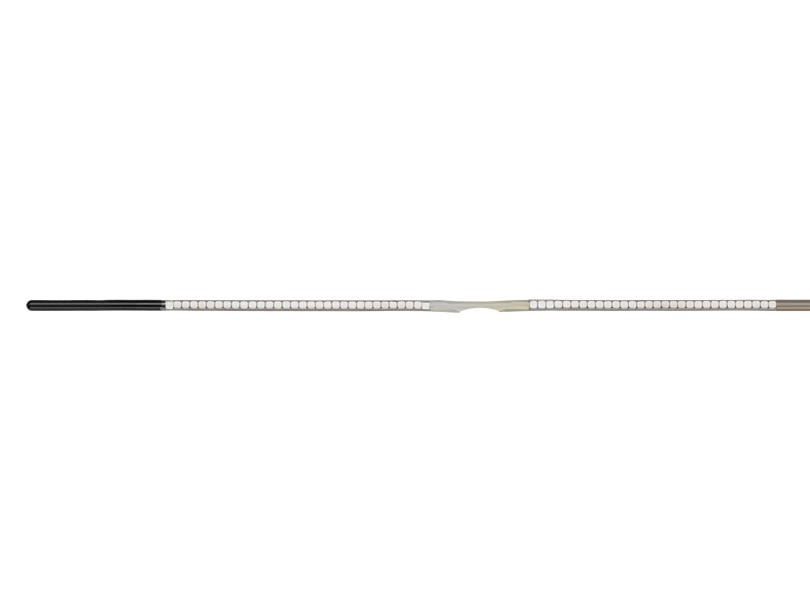

The WavelinQ™ EndoAVF System arterial catheter contains a backstop for receiving the electrode. When placed in proximity, the magnets contained in each catheter attract, while aligning the electrode with the backstop. Two rotational indicators, present in each catheter, are used to accurately position the catheters. The catheters may be advanced and engaged in either a parallel (same direction) or antiparallel (opposite direction) configuration.

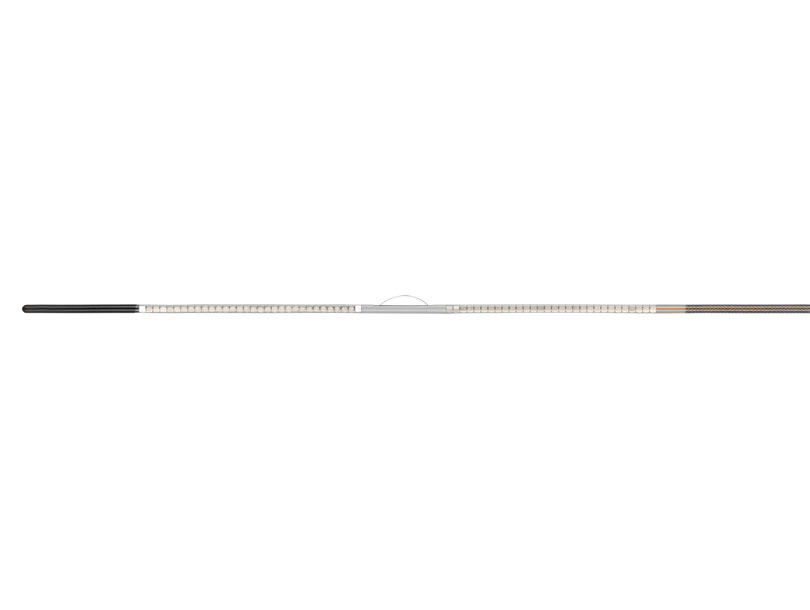

The WavelinQ™ EndoAVF System venous catheter is a flexible 4F magnetic catheter that contains a radiofrequency (RF) electrode for the delivery of RF energy, a yellow valve crosser on the distal end, and a cable and plug. The WavelinQ™ venous catheter connects via an Electrosurgical Pencil to an ESU for delivery of radiofrequency energy with standard grounding pads. RF energy can then be delivered to create a connection between the artery and vein.
