Swan-Ganz™ Advanced Technology Pulmonary Artery Catheters enable continuous assessment of flow, pressure and oxygen delivery and consumption, so you have an uninterrupted view of cardiac function and proactive decision support in your most complex patients. Access a comprehensive hemodynamic profile delivered by a single catheter to help you assess cardiovascular function and guide treatment decisions.
true
Swan-Ganz™ Pulmonary Artery Catheters
The most trusted name in right heart monitoring
- Overview
- Advanced Technology Catheters
- Standard Catheters
- Pacing Catheters
- EIFU & Resources
Right heart. Right information. Right now.
The first flow-directed Swan-Ganz™ Pulmonary Artery Catheter revolutionized hemodynamic monitoring in critically ill patients. Utilizing continuous data, Swan-Ganz™ Pulmonary Artery Catheters track your patient’s hemodynamic status to assist your early evaluation.

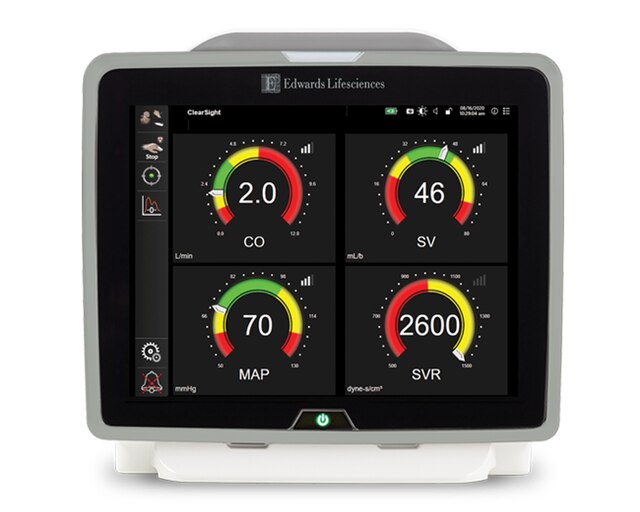

Continuous view of cardiac function in your most complex patients
Swan-Ganz™ Advanced Technology Catheters give you a comprehensive hemodynamic profile—delivered by a single catheter*—to guide treatment strategy. For a continuous view of cardiac function that can enable earlier intervention, choose the catheter with the parameters that best suit your clinical approach and your patient’s needs. Swan-Ganz™ Advanced Technology Catheters offer Continuous Cardiac Output (CCO) which continuously monitors cardiac output.
*When used with a compatible monitoring platform.
The thermodilution catheters monitor intracardiac pressures, cardiac output, and provide infusing solutions.
Model | Description | Size (F) | Length (cm) |
132F5 | Four Lumen Catheter | 5 | 78 |
| 096F6P | Four Lumen Catheter | 6 | 110 |
| 131F7P | Standard Four Lumen Catheter | 7 | 110 |
| 831F75 | VIP Five Lumen Catheter | 7.5 | 110 |
Model | Description | Size (F) | Length (cm) |
110F5 | Double Lumen Monitoring | 5 | 110 |
| 111F7, 111F7P | Double Lumen Monitoring | 7 | 110 |
| 123F6, 123F6P | Double Lumen Monitoring | 6 | 110 |
| 114F7, 114F7P | Triple Lumen Monitoring | 7 | 110 |
| 116F4 | Double Lumen Monitoring | 4 | 60 |
TruWave™ Disposable Pressure Transducer Arterial Turnarounds
Model | Description | Size (F) | Length (cm) |
D97120F5 | SVC Insertion, Catheter Only | 5 | 90 |
| D97130F5 | Femoral Insertion, Catheter Only, J-Tip | 5 | 90 |
Model | Description | Size (F) | Length (cm) |
931F75 | Paceport 5 Lumen TD Catheter | 7.5 | 110 |
TruWave™ Disposable Pressure Transducer Tubing
Model | Description | Size (F) | Length (cm) |
D200F7 | Pacing-TD Catheter | 7 | 110 |
Accessories
Model | Description | Size (F) |
93600 | Cold Injectate System | 5 |
| 93610 | Room Temperature Injectate System | 7 |
A comprehensive hemodynamic profile in a single catheter
Target complex patient conditions with advanced hemodynamic parameters
For a continuous view of cardiac function that can enable earlier intervention, choose the catheter with the parameters that best suit your clinical approach and your patient’s needs. Swan-Ganz™ Catheter allows continuous monitoring of the balance of oxygen delivery and consumption with these advanced hemodynamic parameters:
PARAMETERS: SvO2 | CCO | SV | SVR | RVEF | RVEDV | PAP | RAP | PAOP
| Continuous cardiac output (CCO) | Mixed venous oxygen saturation (SvO2) |
Swan-Ganz™ Advanced Technology Catheters offer CCO, which continuously monitors cardiac output with the ability to:
| Swan-Ganz™ Oximetry Catheters allow for the continuous monitoring of SvO2, which updates every 2 seconds to assess the balance between oxygen delivery and consumption. Since SvO2 is a sensitive indicator of patient status and generally precedes other indications of cardiopulmonary instability, continuous SvO2 monitoring may allow diagnostic and therapeutic decisions to be made earlier in the patient's clinical course. |

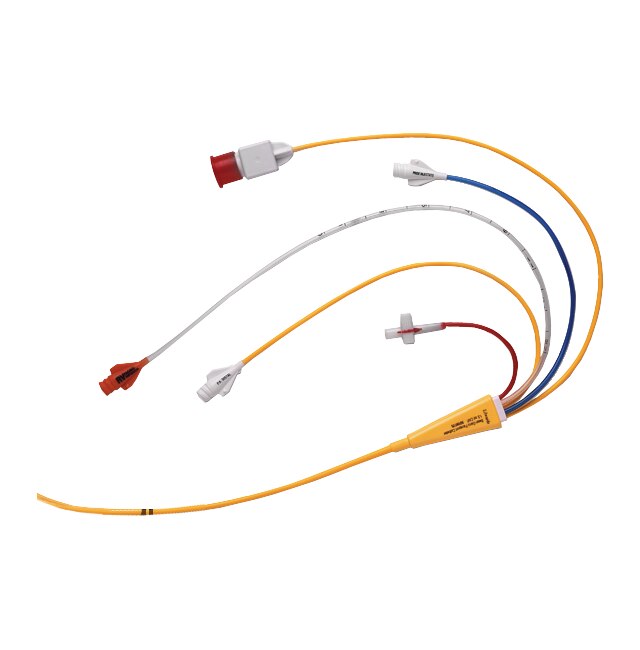

Thermodilution pulmonary artery catheters
Swan-Ganz™ Thermodilution Catheters monitor intracardiac pressures and cardiac output, along with providing infusing solutions.
When used with a compatible monitor, Swan-Ganz™ Thermodilution Catheters enable you to:
- Assess hemodynamic condition through direct intracardiac and pulmonary artery pressure monitoring and cardiac output determination.
- Sample mixed venous blood through the distal (pulmonary artery) port for the assessment of oxygen transport balance and the calculation of derived parameters such as oxygen consumption, oxygen utilization coefficient, and intrapulmonary shunt fraction.
- Infuse using an extra lumen with proximal port (30 cm) on Swan-Ganz™ VIP Catheters, in addition to the standard distal and injectate lumens, to provide direct access to the right atrium.
PARAMETERS: iCO | PAP | RAP | PAOP

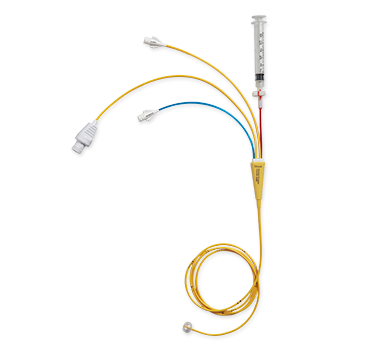

Flow-directed monitoring catheters
The following parameters are available through the flow-directed monitoring catheters†: Pulmonary Artery Pressure (PAP), Pulmonary Artery Occlusion Pressure (PAOP)*.
The Flow-Directed Monitoring Catheters monitor right heart pressures and enable mixed venous blood sampling as well as infusing solutions.
PARAMETERS: PAOP
* PAOP available through balloon occlusion function.
† When used with a compatible monitoring platform.
‡ When used with an external pacemaker.
§ When used with an external pacemaker and used with the appropriate Edwards Chandler Transluminal A and/or V pacing probes.
Thermodilution is abbreviated as TD.

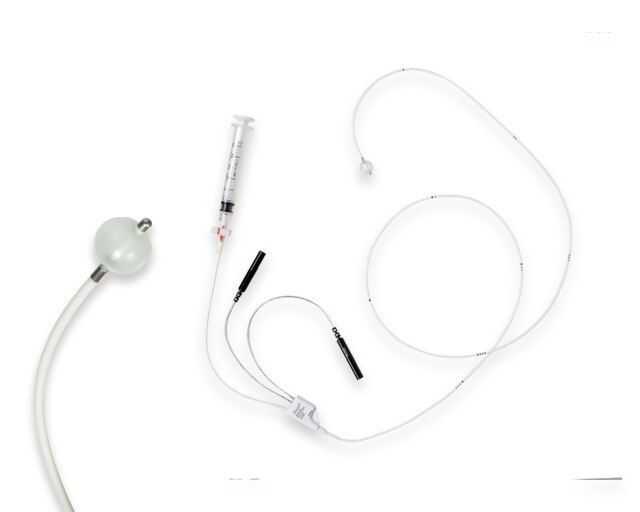

Bipolar Pacing Catheters
Bipolar Pacing Catheters are designed for temporary right ventricular endocardial pacing.‡;
- Balloon tip facilitates insertion by flow-direction
- A pair of electrodes at the tip provide capabilities for bipolar pacing
- "J"- tip configuration is available for femoral insertion to predispose the catheter to a stable pacing position in the apex of the right ventricle

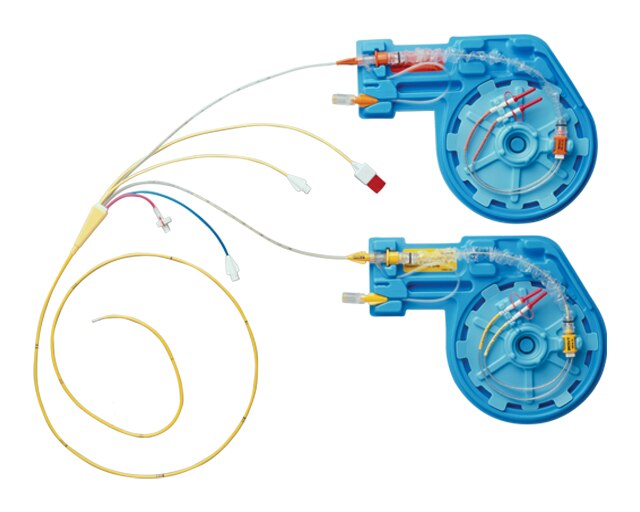

Thermodilution Paceport™ Catheter
A-V Paceport™ or Pacing-TD Catheters offer atrial, ventricular, or A-V sequential temporary transvenous pacing in the right heart.§
- Thermodilution Paceport™ Catheter offers temporary transvenous right ventricular pacing‡ when used with the appropriate Edwards Chandler Transluminal V pacing probes
- Thermodilution A-V Paceport™ Catheter is indicated for temporary transvenous right ventricular, atrial, or A-V sequential pacing‡ when used with the appropriate Edwards Chandler Transluminal A and/or V pacing probes
- Swan-Ganz Oximetry Paceport™ TD Catheters offer bolus cardiac output and SvO2 monitoring when used with a compatible monitor in addition to temporary transvenous pacing when used with the appropriate BD Chandler Transluminal V pacing probe

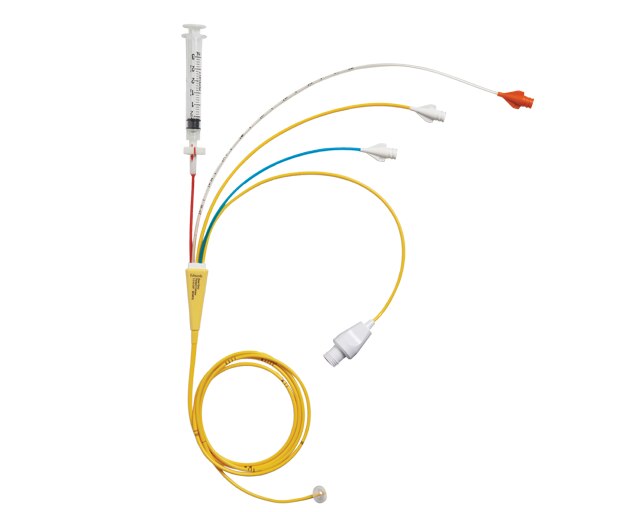

Pacing-TD catheters
The A-V Paceport™ or Pacing-TD catheters offer atrial, ventricular, or A-V sequential temporary transvenous pacing in the right heart.§
- Three atrial and two ventricular electrodes for atrial and ventricular pacing and atrioventricular (A-V) sequential pacing are integrated into the pulmonary artery catheter for temporary transvenous pacing‡
- Pacing-TD™ Catheter can measure right heart pressures, blood sampling, solution infusion, and cardiac output measurements by thermodilution when used with a compatible monitoring platform

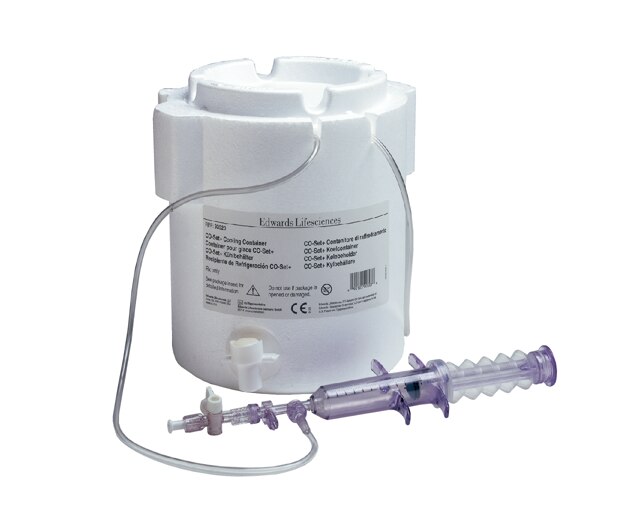

CO-Set+™ Close Injectate Delivery System
CO-Set+™ Closed Injectate Delivery System works effectively with room temperature or cold injectate for the measurement of bolus thermodilution cardiac output when used with a compatible monitoring platform and Swan-Ganz™ Catheter.
- In-line temperature probe is directly in the injectate fluid path.
- Volume-limited syringe (10 cc) aids in obtaining reproducible cardiac output by simplifying filling and eliminating the variability from differences in filling techniques.
- The syringe plunger and the finger grips on the syringe jacket have been designed to help accommodate a wide range of user hand sizes for efficient and comfortable injection of fluid.
* PAOP available through balloon occlusion function.
† When used with a compatible monitoring platform.
‡ When used with an external pacemaker.
§ When used with an external pacemaker and used with the appropriate Edwards Chandler Transluminal A and/or V pacing probes.
Thermodilution is abbreviated as TD.
