Acumen IQ™ Sensor

Unlock continuous access to predictive decision support

Overview
Predictive Software
Related Products
EIFU & Resources

Experience the power of predictive decision support

Acumen IQ™ Sensor provides continuous access to predictive decision support and advanced haemodynamics. This smart sensor unlocks the ability to predict haemodynamic instability and optimize pressure and flow.

Unlocks two predictive algorithms

Access Acumen Hypotension Prediction Index (HPI™) Software and Acumen Assisted Fluid Management (AFM™) Software.*
Attaches to any arterial line

Automatically calculates key parameters every 20 seconds when attached to any existing arterial line.
Enables individualized patient care

Acumen IQ™ Sensor is part of an advanced haemodynamic family of solutions that help guide individualized treatment decisions.

*Acumen IQ™ Sensor is indicated for surgical and nonsurgical patients when using with Acumen HPI™ Software. It is only indicated for surgical patients when using with Acumen AFM™ Software.

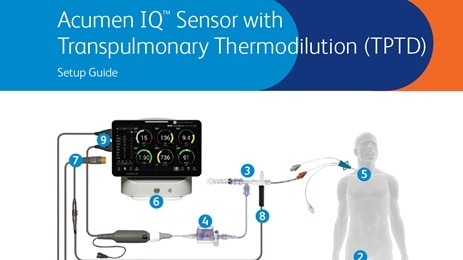

Access volumetric parameters through TPTD

Monitoring patients with Acumen IQ™ Sensor + TPTD (transpulmonary thermodilution)* offers key volumetric parameters (EVLW, PVPI, GEDV, GEF), along with continuous calibrated cardiac output (CO), stroke volume (SV), cardiac index (CI) and stroke volume index (SVI) between TPTD measurements.

All these advanced haemodynamic parameters are available on HemoSphere Alta™ Monitor.^†

*Acumen IQ™ Sensor is only indicated for surgical patients when using with Acumen AFM™ Software.

†When connected to a femoral arterial catheter and a pressure transducer connected to a central venous catheter. TPTD only available on HemoSphere Alta™ Monitor.

Advanced haemodynamic parameters for proactive patient insights

Hypotension Prediction Index (HPI)
Contractility: Systolic Slope (dP/dt)
Afterload: Dynamic arterial elastance (Ea_dyn)
Stroke Volume (SV)
Stroke Volume Variation (SVV)

Mean Arterial Pressure (MAP)
Cardiac Index (CI)
Systemic Vascular Resistance (SVR)
Pulse Pressure Variation (PPV)

Model Number	Description	Length	Unit of Measure
AIQS6AZR5	Acumen IQ™ Sensor With VAMP™ Adult System	60 in / 152 cm	5
AIQS6R	Acumen IQ™ Sensor Standalone	60 in / 152 cm	1
AIQS6R5	Acumen IQ™ Sensor Standalone	60 in / 152 cm	5
AIQS8R	Acumen IQ™ Sensor Standalone	84 in / 213 cm	1
AIQS8R5	Acumen IQ™ Sensor Standalone	84 in / 213 cm	5

Model Number	Description
TPTDALL5F5	Acumen IQ™ Sensor With TPTD Kit 5F (5-Pack)
TPTDALL4F5	Acumen IQ™ Sensor With TPTD Kit 4F (5-Pack)
TPTD5F5	TPTD Kit 5F (5-Pack)
TPTD5F1	TPTD Kit 5F
TPTD4F5	TPTD Kit 4F (5-Pack)
TPTD4F1	TPTD Kit 4F

Predictive Software

Stay ahead of hypotension

Acumen IQ™ Sensor unlocks Acumen HPI™ Software, which is designed to help you predict and treat hypotension. A multicenter, prospective, observational study across 5 countries demonstrated patients monitored with Acumen IQ™ Sensor and Acumen HPI™ Software experienced a low incidence, duration and severity of intraoperative hypotension.*¹

*Hypotension defined as >1 min below MAP 65 mmHg.

Keep your surgical patients in the optimal fluid range

Acumen IQ™ Sensor also unlocks Acumen AFM™ Software, which predicts a patient’s responsiveness to fluid. Throughout a procedure, Acumen AFM™ Software adapts to each patient, learning from each bolus to optimize and make its future recommendations. With Acumen IQ™ Fluid meter, you can automatically track volume administration and flow rate in real time.

Discover the smart sensor designed to help you optimize perfusion.

Harness the power of intelligent decision support

Acumen IQ™ Sensor is part of the Acumen™ Software suite of intelligent decision support solutions.

With access to advanced haemodynamic monitoring that provides predictive algorithms for optimizing pressure and flow, you gain valuable insight into the adequacy of perfusion.

Reimagine the way you see haemodynamic monitoring

HemoSphere Alta™ Monitor

Learn more

Access continuous noninvasive blood pressure monitoring

Acumen IQ™ Cuff

Learn more

Analyze retrospective haemodynamic insights

Acumen Analytics™ Software

Learn more

eIFUs for Edwards Lifesciences

true

Access our extensive collection of informative product and educational resources, designed to keep you informed and help you achieve excellence.

Learn more

BD Advanced Patient Monitoring is here to help you stay on top of the latest clinical challenges and make the most of haemodynamic monitoring solutions.

Explore Resources

true

Kouz K, Garcia MIM, Cerutti E, Lisanti I, Draisci G, Frassanito L, et al. Intraoperative hypotension when using hypotension prediction index software during major noncardiac surgery: a European multicentre prospective observational registry (EU Hyprotect). BJA Open. 2023;6:100140.
