Acumen IQ™ Sensor with Transpulmonary Thermodilution (TPTD)

The power of combination

Contact Us
Medical IV tubing and connector components
Loading
true
Overview

Expanding the application of thermodilution technology

Access key volumetric parameters for your most critical patients

The combination of Acumen IQ™ Sensor with Transpulmonary Thermodilution (TPTD) provides access to advanced haemodynamic parameters, volumetric variables and lung water measurements to support the assessment of cardiovascular function and patient status.

Key volumetric parameters:

  • EVLW
  • PVPI
  • GEDV
  • GEF


Along with advanced haemodynamic parameters:

  • Hypotension Prediction Index (HPI)
  • Contractility: Systolic Slope (dP/dt)
  • Afterload: Dynamic arterial elastance (Eadyn)
  • Stroke Volume (SV)
  • Stroke Volume Variation (SVV)
  • Mean Arterial Pressure (MAP)
  • Cardiac Index (CI)
  • Systemic Vascular Resistance (SVR)
  • Pulse Pressure Variation (PPV)
The Continuum of Care

Haemodynamic monitoring across the patient pathway

The combination of Acumen IQ™ Sensor and Transpulmonary Thermodilution (TPTD) supports haemodynamic monitoring throughout the continuum of care, from the operating room to the intensive care unit.

Helping move from minimally invasive monitoring to advanced haemodynamic assessment as patient needs evolve.

  • Vitals Line icon

    Acumen IQ™ Sensor in OR

    • Guideline driven haemodynamics, minimally invasive
    • Predict hypotension before it happens
    • OR ready personalized haemodynamic optimization
  • Patient Line

    Acumen IQ™ Sensor in ICU

    • Continuity of care, powered by ESICM guidelines
    • Early, reliable hypotension prediction in ICU
    • Smarter ICU decisions through advanced haemodynamics
  • IV half line icon

    Acumen IQ™ Sensor + TPTD in ICU

    • Seamless escalation to gold standard fluid management
    • Precision haemodynamic intelligence for critically ill patients
    • Advanced multiparameter insights for precise haemodynamics
Continuous CO

Continuous cardiac output using the Acumen IQ™ Sensor with TPTD

Acumen IQ™ Sensor technology uses a calibrated arterial pressure based cardiac output (APCO) for its continuous cardiac output calculation. This pulse contour analysis is calibrated against the measured TPTD cardiac output and uses similar wave shaped variables to maintain the accuracy between calibrations as the FloTrac™ Algorithm.

The transpulmonary thermodilution algorithm adjusts the calculated continuous cardiac output display by a percent change based on its proprietary algorithm against the measured cardiac output.

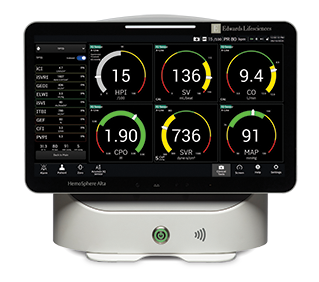

Acumen IQ™ Sensor with TPTD is available in HemoSphere Alta™

BD medical infusion and access devices

Allows for the measurement of:

  • Cardiac function index (CFI)
  • Cardiac output (iCO)
  • Cardiac index (iCI)
  • Extravascular lung water (EVLW)
  • Extravascular lung water index (ELWI)
  • Global ejection fraction (GEF)
  • Global end-diastolic volume (GEDV)
  • Global end-diastolic volume index (GEDI)
  • Intrathoracic blood volume (ITBV)
  • Intrathoracic blood volume index (ITBI)
  • Pulmonary vascular permeability index (PVPI)
  • Stroke volume (iSV)
  • Stroke volume index (iSVI)
  • Systemic vascular resistance (iSVR)
  • Systemic vascular resistance index (iSVRI)
  • Hypotension Prediction Index (HPI)
  • Contractility: Systolic Slope (dP/dt)
  • Afterload: Dynamic arterial elastance (Eadyn)
Model Numbers

Acumen IQ™ Sensor with TPTD Bundles and Kits

Model Number

Description

TPTDALL5F5

Acumen IQ™ Sensor With TPTD Kit 5F (5-Pack)

TPTDALL4F5

Acumen IQ™ Sensor With TPTD Kit 4F (5-Pack)

TPTD5F5

TPTD Kit 5F (5-Pack)

TPTD5F1

TPTD Kit 5F

TPTD4F5

TPTD Kit 4F (5-Pack)

TPTD4F1

TPTD Kit 4F





References
Getting Started

Setup Video

This video details the process of setting up the Acumen IQ™ Sensor with Transpulmonary Thermodilution (TPTD) on the HemoSphere Alta™ Monitor.

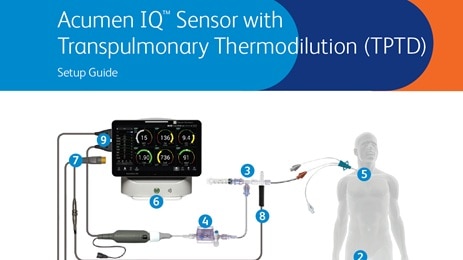

Setup Guide

Acumen IQ™ Sensor + TPTD Setup Guide

Download

Brochure

Acumen IQ™ Sensor + TPTD Brochure

Download

References
Related Products

By combining the diagnostic power of TPTD with the predictive intelligence of Acumen IQ™ Sensor with Acumen HPI™, clinicians can move seamlessly from advanced assessment to continuous optimisation of therapy.

Acumen IQ sensor square

Acumen IQ™ Sensor

Acumen IQ™ Sensor unlocks advanced predictive decision support to help you optimise pressure and flow.

Explore Acumen IQ™ Sensor

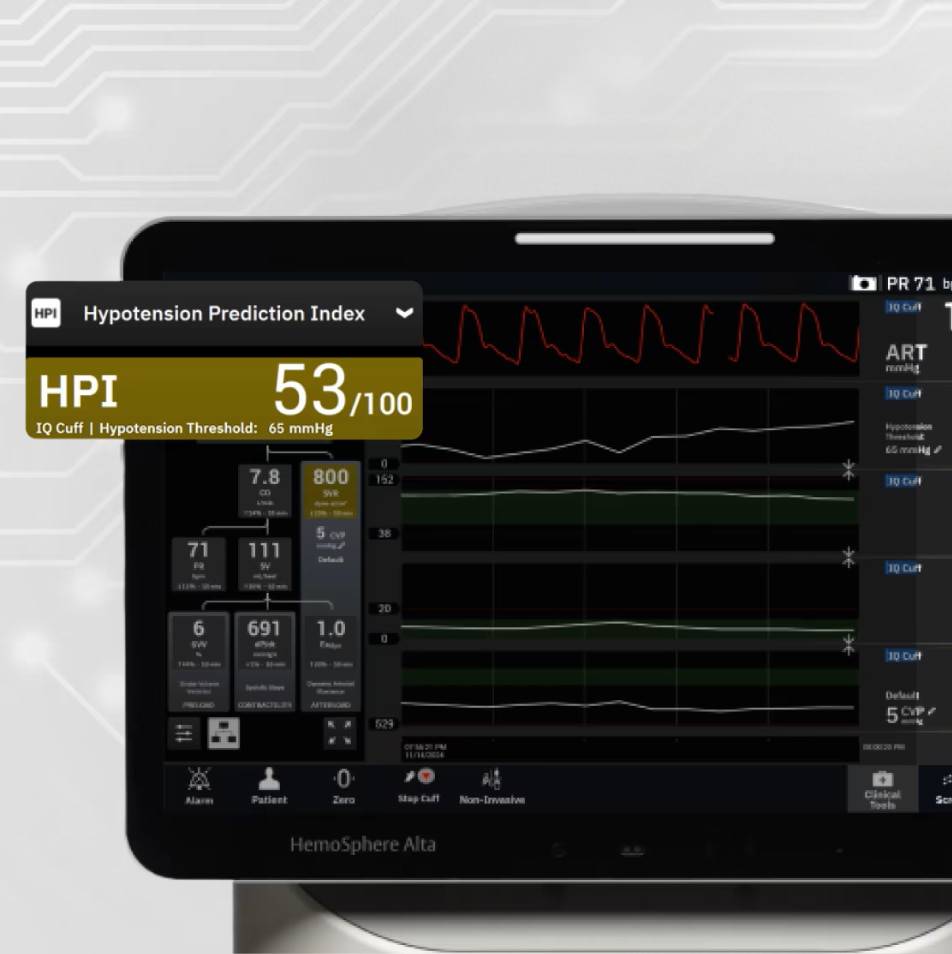

HPI Screen

Acumen HPI™ Software

Acumen HPI™ Software provides AI-guided, predictive decision support to help you drill down to the potential root cause of haemodynamic instability and intervene sooner.

Explore Acumen HPI™ Software

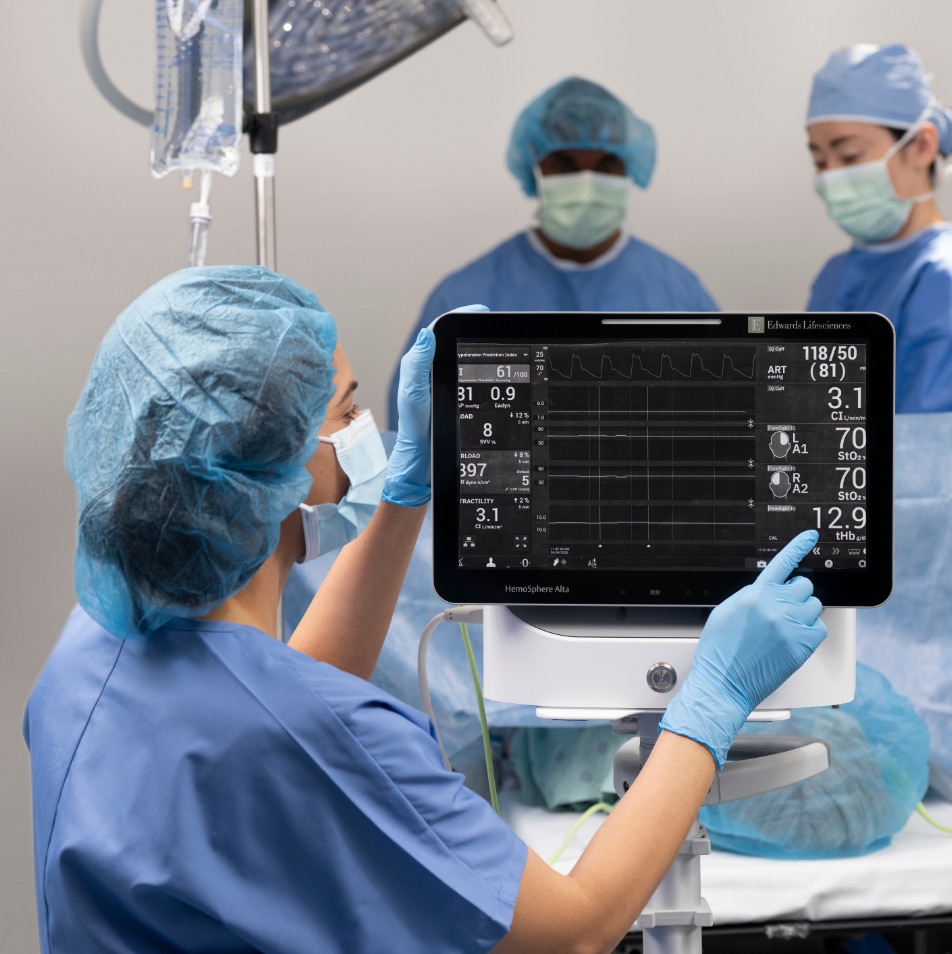

HemoSphere Alta Square

HemoSphere Alta™ Monitor

HemoSphere Alta™ Monitor is designed for smart and predictive parameters to support informed, proactive clinical decision making. You’ll have a monitor that can predict instability—so you can act to prevent potential adverse events.

Explore HemoSphere Alta™ Monitor
