BD Aptra™ Digital Endoscope System

When your choice is a single-use scope, you should expect enhanced image quality, a small outer diameter and maximum deflection.

Contact Us
Loading
Overview

About

The BD Aptra™ Ureteroscope is our answer to the natural evolution of ureteroscopy: a single-use device combining essential visualization, increased functionality, and comfort.  Without the unnecessary variabilities of reusable ureteroscopes—from unpredictable downtime and expensive repairs to diminishing performance and lifecycles. The BD Aptra™ Ureteroscope provides a responsive solution to meet the demands associated with increasing case numbers.

BD Aptra™—Championing single-use adoption, because it's the smart and responsible thing to do

See how making the shift to disposable ureteroscopes, like BD Aptra™ Ureteroscope, has made a difference for Dr. Stoller, MD Professor and Vice Chair of Urology.

The BD Aptra™ Ureteroscope offers:

  • Image quality enhanced with the light source inside the tip of the scope
  • Tapered 7.4 Fr. distal tip.
  • Design for maximum deflection to reach stones in the lower pole

A ureteroscope is the cornerstone visualization tool of a urological procedure.

true

Learn more about our stone management solutions

Enhanced Image Quality

  • In simulated testing, data shows that the average resolution on the BD Aptra™ Ureteroscope is better than the LithoVue™ ureteroscope at all conclusive target distances.*
  • Camera module which produced an image resolution of 400 x 400 pixels.



*Based on resolution bench-top testing at varying distances. May not be indicative of actual clinical performance.

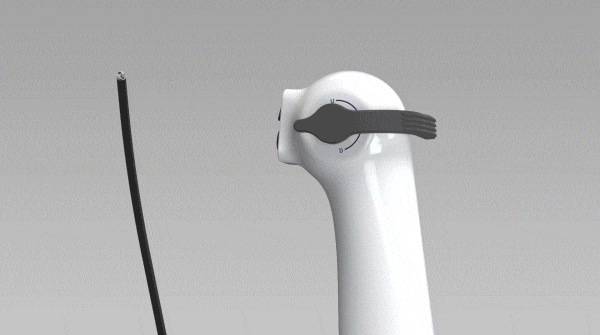

Designed for a greater maximum deflection angle

  • The BD Aptra™ Ureteroscope has a 5˚ greater maximum deflection angle than the LithoVue™ ureteroscope.**
  • Maximum deflection of 275˚ in two directions.



**Information for LithoVue™ excerpted from literature published by Boston Scientific.

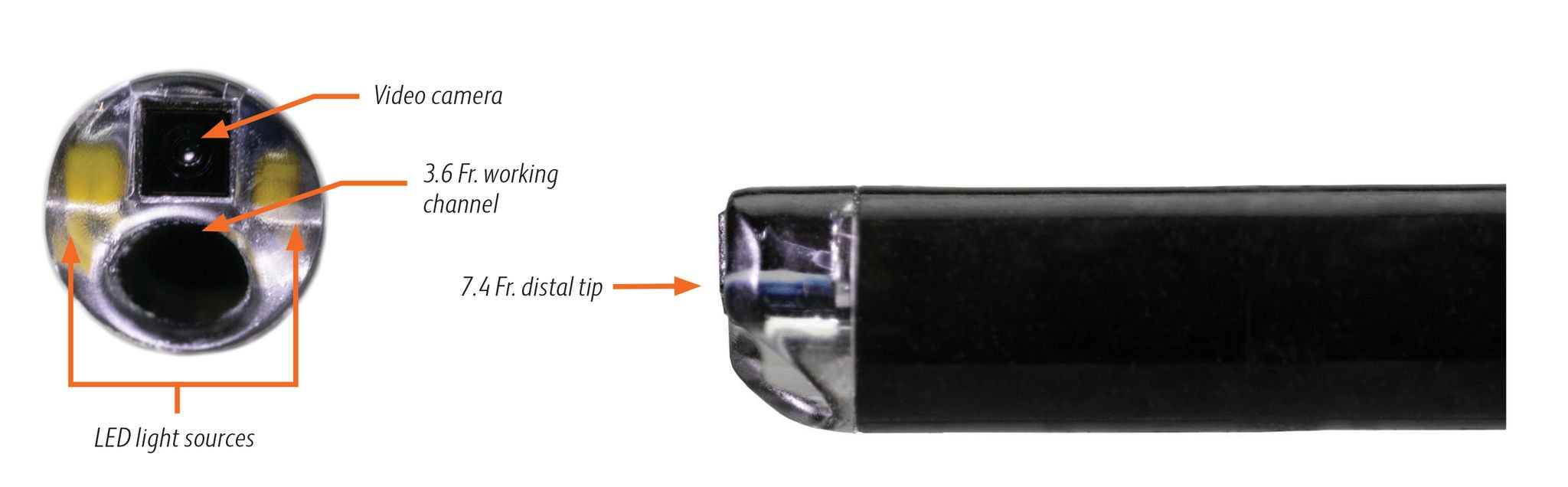

Specially Engineered Tip

  • A 3.6 Fr. working channel, camera module, and two LEDs are all built into a tapered 7.4 Fr. tip.
  • LEDs at the tip for enhanced illumination and overall image quality.

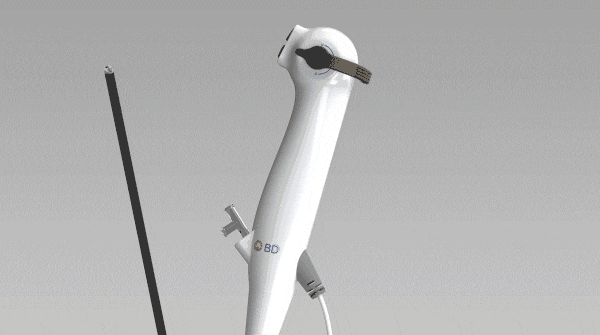

Handle Functionality

  • Ergonomic handle design & optimized location of access port and power cord for easier handling.
  • Two programmable buttons to control key functionalities (e.g. brightness, zoom) and up to 3 unique user profiles can be stored on the BD Aptra™ Image System.

References

Al-Balushi, K; Martin, N, et al. Comparative medico-economic study of reusable vs. single-use flexible ureteroscopes. Springer Nature. 2019.
Ofstead, C.L; Heymann, O.L; et al. The effectiveness of sterilization for flexible ureteroscopes: A real-world study. American Journal of Infection Control. 2017.
Sooriakumaran, P.; Kaba, R.; et al. Evaluation of the mechanisms of damange to flexible ureteroscopes and suggestions for ureteroscope preservation. AJA. 2005.
Hennessey, D.B.; Fojecki, G.L; et al. Single-use disposable digital flexible ureteroscopes: an ex vivo assessment and cost analysis. BJUI. 2018.
Davis, N.F.; McGrath, S.; et al. Carbon Footprint in Flexible Ureteroscopy: A Comparative Study on the Environmental Impact of Reusable and Single-Use Ureteroscopes. Journal of Endourology. Vol 32, 3; March 2018.

Intended use


BD Aptra™ Digital Endoscope System is intended to be used by physicians to access, visualize, and perform procedures in the urinary tract and the kidney. The instrument enables delivery and use of accessories such as biopsy forceps, laser fibers, graspers and retrieval baskets at a surgical site.

Contraindications


Diagnostic or therapeutic ureteroscopy is contraindicated in people with an untreated urinary tract infection. Other contraindications to therapeutic ureteroscopy (e.g. lithotripsy, endopyelotomy, tumor therapy) are more numerous and can mirror those associated with the corresponding open surgical interventions. Patients on anticoagulants or with coagulopathies should be managed appropriately.


Warnings


• Do not use electromedical energy sources in the presence of flammable detergents, anesthetics, nitrous oxide (N2O), or oxygen.
• Consult the user manuals of all electromedical energy sources used with endoscopic instruments for appropriate instruments, warnings and cautions prior to use. Such sources of energy include electrical, electrohydraulic, electrosurgical, heat hydraulic, laser, light, pressure, sound, ultrasound and vacuum.
• Do not insert or advance the ureteroscope unless there is a clear live endoscopic view of the lumen through which the scope is being advanced (or confirm with visualization by other imaging modalities).
• During the procedure, if the live endoscopic image is lost, do not advance or insert the ureteroscope and do not insert, advance or actuate accessories.
• Do not use excessive force while advancing or withdrawing the scope. If resistance is felt during advancement or withdrawal of the scope, investigate the source of resistance and/or take remedial action if necessary.
• Do not force the distal tip of the ureteroscope against the sidewall of the ureter or renal pelvis.
• Do not use excessive force when advancing or withdrawing an accessory within the ureteroscope.
• When inserting or using accessories, maintain continuous visualization of the distal tip. Ensure that the distance between the distal tip of the ureteroscope and the object in view is greater than the ureteroscope’s minimum visible distance. Failure to do so may result in the accessories causing patient injury.
• Do not withdraw a laser fiber back into the ureteroscope while the laser is firing. Doing so may cause patient injury and/or scope damage.
• Do not look directly into the light emitted from the ureteroscope.
• Verify ground isolation when setting up and using accessories from different manufacturers prior to procedure.
• Do not open the handle of the ureteroscope.
• The ureteroscope is a single-use device and there are no serviceable parts. Do not repair damaged or non-operating ureteroscopes. Do not use the ureteroscope if damage is discovered or suspected.
• Do not excessively bend the flexible shaft or the articulating section of the ureteroscope.
• If damage to the ureteroscope occurs or it stops functioning during a procedure, stop using the ureteroscope immediately. See troubleshooting section for more information. Continue the procedure with a new ureteroscope, as appropriate.

Products & Accessories
  • product-image

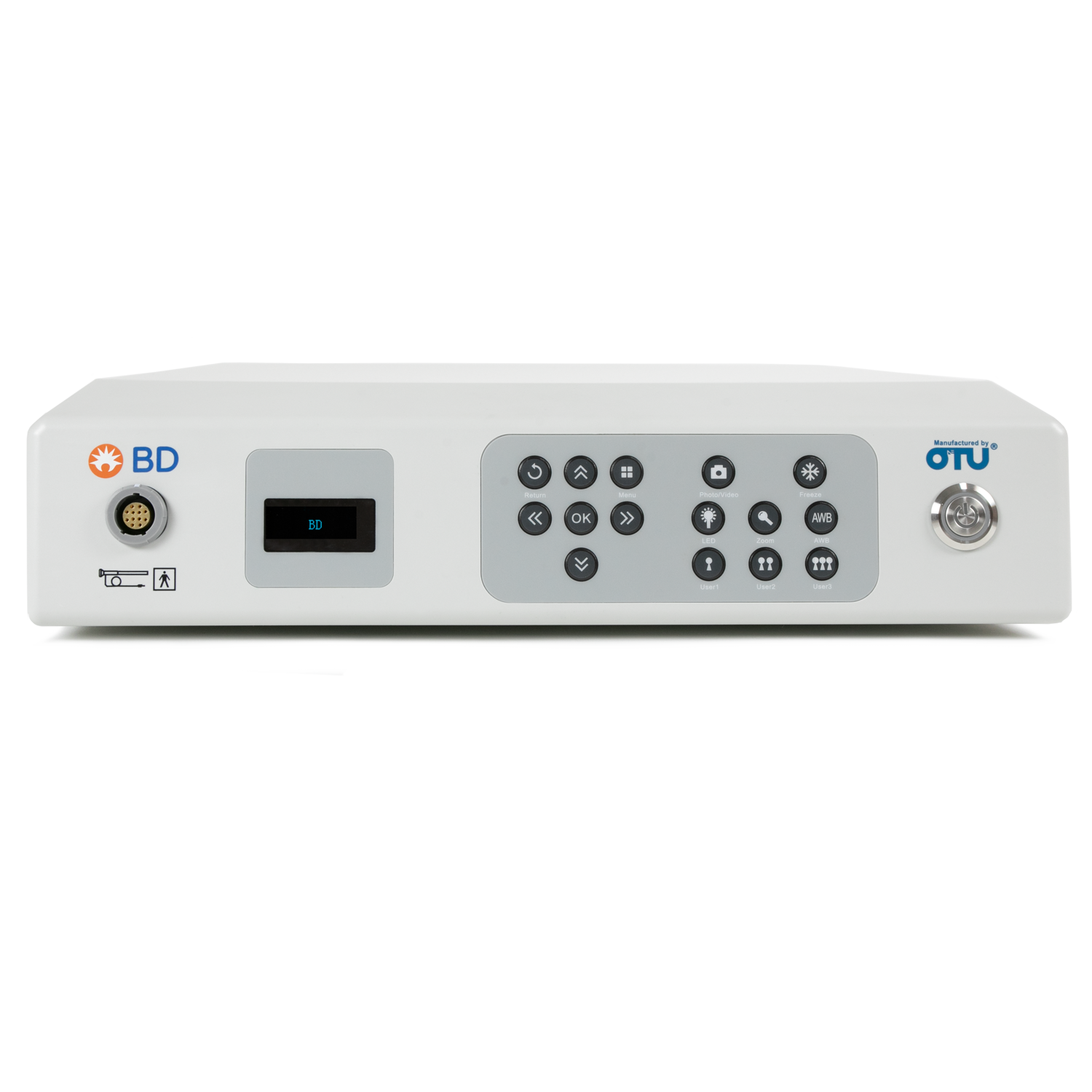

    BD Aptra™ Image System

    The BD Aptra™ Image System displays video images from the ureteroscope to a monitor or computer which can then be viewed by the surgeon.

  • product-image

    BD Aptra™ Single-Use Digital Flexible Ureteroscope Reverse Deflection Model

    The reverse deflection model of the BD Aptra™ Single-Use Digital Flexible Ureteroscope is comprised of a hand piece with an articulation lever, accessory and irrigation ports, and a flexible insertion tube.  

  • product-image

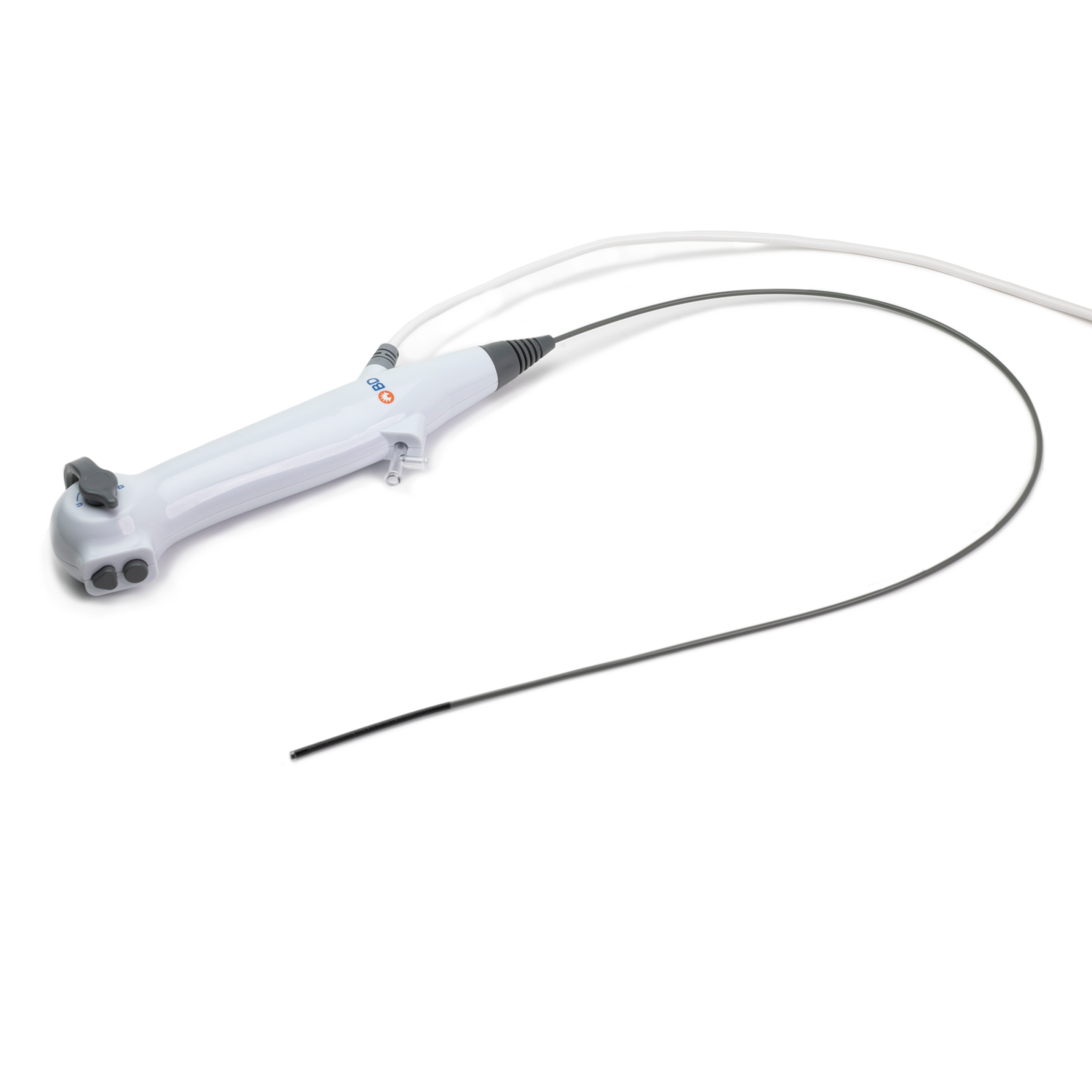

    BD Aptra™ Single-Use Digital Flexible Ureteroscope Standard Deflection Model

    The standard deflection model of the BD Aptra™ Single-Use Digital Flexible Ureteroscope is comprised of a hand piece with an articulation lever, accessory and irrigation ports, and a flexible insertion tube.  

Related Products

References

Al-Balushi, K; Martin, N, et al. Comparative medico-economic study of reusable vs. single-use flexible ureteroscopes. Springer Nature. 2019.
Ofstead, C.L; Heymann, O.L; et al. The effectiveness of sterilization for flexible ureteroscopes: A real-world study. American Journal of Infection Control. 2017.
Sooriakumaran, P.; Kaba, R.; et al. Evaluation of the mechanisms of damange to flexible ureteroscopes and suggestions for ureteroscope preservation. AJA. 2005.
Hennessey, D.B.; Fojecki, G.L; et al. Single-use disposable digital flexible ureteroscopes: an ex vivo assessment and cost analysis. BJUI. 2018.
Davis, N.F.; McGrath, S.; et al. Carbon Footprint in Flexible Ureteroscopy: A Comparative Study on the Environmental Impact of Reusable and Single-Use Ureteroscopes. Journal of Endourology. Vol 32, 3; March 2018.

Intended use


BD Aptra™ Digital Endoscope System is intended to be used by physicians to access, visualize, and perform procedures in the urinary tract and the kidney. The instrument enables delivery and use of accessories such as biopsy forceps, laser fibers, graspers and retrieval baskets at a surgical site.

Contraindications


Diagnostic or therapeutic ureteroscopy is contraindicated in people with an untreated urinary tract infection. Other contraindications to therapeutic ureteroscopy (e.g. lithotripsy, endopyelotomy, tumor therapy) are more numerous and can mirror those associated with the corresponding open surgical interventions. Patients on anticoagulants or with coagulopathies should be managed appropriately.


Warnings


• Do not use electromedical energy sources in the presence of flammable detergents, anesthetics, nitrous oxide (N2O), or oxygen.
• Consult the user manuals of all electromedical energy sources used with endoscopic instruments for appropriate instruments, warnings and cautions prior to use. Such sources of energy include electrical, electrohydraulic, electrosurgical, heat hydraulic, laser, light, pressure, sound, ultrasound and vacuum.
• Do not insert or advance the ureteroscope unless there is a clear live endoscopic view of the lumen through which the scope is being advanced (or confirm with visualization by other imaging modalities).
• During the procedure, if the live endoscopic image is lost, do not advance or insert the ureteroscope and do not insert, advance or actuate accessories.
• Do not use excessive force while advancing or withdrawing the scope. If resistance is felt during advancement or withdrawal of the scope, investigate the source of resistance and/or take remedial action if necessary.
• Do not force the distal tip of the ureteroscope against the sidewall of the ureter or renal pelvis.
• Do not use excessive force when advancing or withdrawing an accessory within the ureteroscope.
• When inserting or using accessories, maintain continuous visualization of the distal tip. Ensure that the distance between the distal tip of the ureteroscope and the object in view is greater than the ureteroscope’s minimum visible distance. Failure to do so may result in the accessories causing patient injury.
• Do not withdraw a laser fiber back into the ureteroscope while the laser is firing. Doing so may cause patient injury and/or scope damage.
• Do not look directly into the light emitted from the ureteroscope.
• Verify ground isolation when setting up and using accessories from different manufacturers prior to procedure.
• Do not open the handle of the ureteroscope.
• The ureteroscope is a single-use device and there are no serviceable parts. Do not repair damaged or non-operating ureteroscopes. Do not use the ureteroscope if damage is discovered or suspected.
• Do not excessively bend the flexible shaft or the articulating section of the ureteroscope.
• If damage to the ureteroscope occurs or it stops functioning during a procedure, stop using the ureteroscope immediately. See troubleshooting section for more information. Continue the procedure with a new ureteroscope, as appropriate.

109726331
Risk of Infection

Choose single-use and decrease the potential risk of infection post-procedure or other possible contamination associated with reprocessing reusable ureteroscopes.



A recent US study analyzed 16 fURS showing, despite validated disinfection procedures, there is no such risk with single-use fURS since a new ureteroscope is used for every patient.1

Group 8849

100% of the [reusable] fURS had visible irregularities and contamination by microbial growth, hemoglobin, a protein, or a chemical indicating the presence of living cells.2*



*Based on study results performed by Ofstead et al. with a sample size of n=16 ureteroscopes.



The BD Aptra™ Single-Use Ureteroscope means a sterile scope for every case.

1281754731
Unavailability of Reusables

Choosing single-use could help reduce canceled or rescheduled cases, lost revenue, wasted time and prolonged pain for the patient due to an unavailable ureteroscope.



Data suggests:



  • Unavailability of reusable scopes is the number one reason for the cancellation of the procedure.1



  • The average unavailability of reusable scopes is 200 days per year due to damages.1

Stick to the schedule with the BD Aptra™ Digital Endoscope System.

aptraimage3
Unpredictable Failures

Choose single use, avoid performance degradation or scope failure due to reprocessing and sterilization:


  • Significant issues associated with both fiber optic and digital reusable scope use = initial purchase cost, maintenance cost, performance degradation, poor durability.

  • Flexible ureteroscopes are very delicate instruments notorious for limited durability and high costs associated with repairs.3

  • Reusable scopes lose functionality over time—loss of flexion and deflection and, in fiber optic instruments, image quality—potentially affecting the outcome of stone surgery.4
aptraimage2

In 1 year, 61% of reusable scopes were sent back to the manufacturer.3*



*Based on study results performed by Sooriakumaran, et al. with a sample size of n=78 ureteroscopes.

The BD Aptra™ Digital Endoscope System delivers confidence and clarity to your cases.

aptraimage1
Environmental Concerns

Choose single-use, limit hospital staff exposure and reduce hospital waste.



  • Single-use fURS do not require decontamination and sterilization1

  • Personnel are not exposed to detergents or disinfectants1

  • Reduction of hospital waste associated with high-level sterilization process1

Start each case confidently with the BD Aptra™ Digital Endoscope System.
