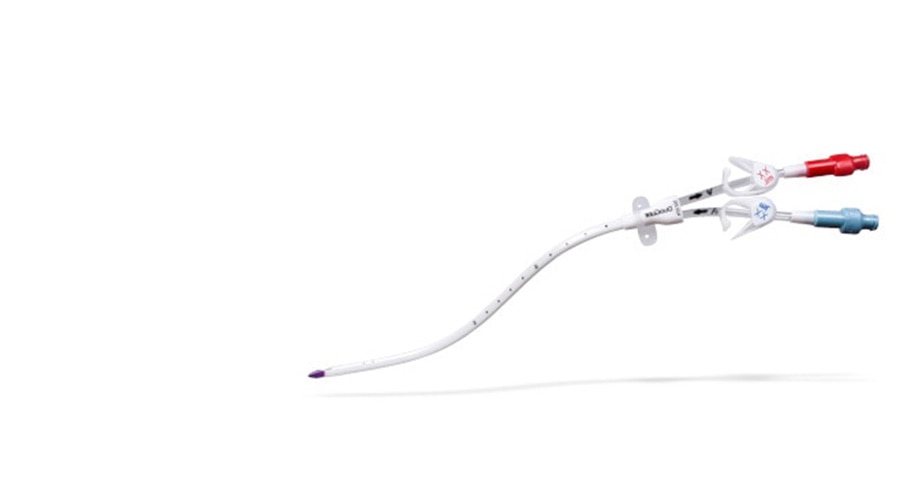

DuoGlide® Short-Term Dialysis Catheter

Contact Us navigation arrow
Background Image
Loading
tabs dropdown arrow
Overview
  • Double Barrel Lumen Design
  • Kink Resistant Catheter Design
  • Symmetrical Tip
  • Catheter Length Options
  • Maximal Barrier Trays
  • Straight or Curved Extension Legs
true
Features and Benefits
Enhanced Acute Dialysis Care

The DuoGlide® Short-Term Dual Lumen Dialysis Catheter is an easy to place, kink resistant, dual-lumen catheter designed for flow rates of 400 mL/min with pressures of less than 250 mmHg1. At a flow rate of 300 mL/min the symmetrical tip design of the 24cm DuoGlide® Short Term Dual Lumen Catheter demonstrated less than 1% recirculation on average when lines are run in forward and reverse2. Note that recirculation in femoral placed catheters is likely significantly greater than in internal jugular placed catheters.

Optimal Performance Features2

  • Double Barrel Lumen Design: allows for flows of 400 mL/min in dialysis lumens with pressures of less than 250 mmHg1
  • Kink Resistant Catheter Design: resists kinking while providing stiffness for insertion

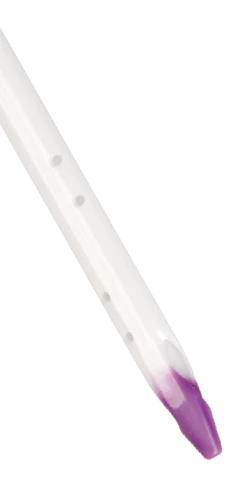

  • Symmetrical Tip: At a flow rate of 300 mL/min the symmetrical tip design of the 24cm DuoGlide® Short Term Dual Lumen Catheter demonstrated less than 1% recirculation on average when lines are run in forward and reverse.2 Note that recirculation in femoral catheters is likely significantly greater than in internal jugular placed catheters
  • Tip: is softer than shaft



Benefits of the DuoGlide® Short-Term Dual Lumen Dialysis Catheters
  • 13 French DuoGlide® Short-Term Dual Lumen Catheters are available in a variety of lengths including a long 30 cm length for femoral placements. Catheters are available in two configurations – with straight and curved extension legs – and in standard kits and full maximal barrier precautions trays. Full maximal barrier precautions trays help clinicians comply with IHI, CDC, and OSHA guidelines and feature a full body drape (70” x 110”), a surgical gown, and safety components.
  • FLEXIBILITY and UTILITY for You and Your patient
  • Dialysis (12 Ga) Lumens indicated for hemodialysis, hemoperfusion, and apheresis
  • Catheter Length Options catheters are available in 12.5 cm, 15 cm, 24 cm, and 30 cm (lengths vary by catheter configuration)
Design
  • Flow Rate of 400 ml/min with pressures of less than 250 mmHg1 in dialysis lumens
  • Double Barrel Lumen Design with round intra lumens
Kink Characteristics
  • 13 Fr. Oval Catheter Shaft designed for excellent kink resistance
  • More Kink Resistant than competitive 11.5 Fr. dual lumen dialysis catheter2

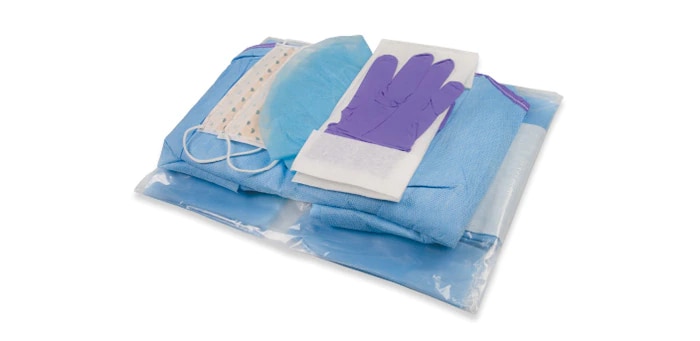

Maximal Barrier Trays

Feature a full body drape (70" x 110"), surgical gown, and safety components.

Maximal barrier precautions help you comply with the latest guidelines from:

  • Centers for Disease Control (CDC) Guidelines
  • Institute for Healthcare Improvement's (IHI) 5 Million Lives Campaign
  • Occupational Safety & Health Administration (OSHA) Guidelines

Reference
  1. As suggested by in vitro data using blood simulate approximately the viscosity of whole blood.
  2. Bench test R61545-0.

Available sizes: 13 Fr.

Please consult product labels, IFU, and package inserts for any indications, contraindications, hazards, warnings, cautions, and instructions for use.

BD-19967

Products & Accessories
  • product-image

    DuoGlide® Short-Term Curved Extension Dialysis Catheter 13F Full Procedure Tray (Dual-Lumen) (24cm)

  • product-image

    DuoGlide® Short-Term Curved Extension Dialysis Catheter 13F Full Procedure Tray (Dual-Lumen) (20cm)

  • product-image

    DuoGlide® Short-Term Curved Extension Dialysis Catheter Full Procedure Tray 13F (Dual-Lumen) (15cm)

  • product-image

    DuoGlide® Short-Term Curved Extension Dialysis Catheter Full Procedure Tray 13F (Dual-Lumen) (12.5cm)

  • product-image

    DuoGlide® Short-Term Straight Dialysis Catheter Full Procedure Tray 13F (Dual-Lumen) (30cm)

  • product-image

    DuoGlide® Short-Term Straight Dialysis Catheter Full Procedure Tray 13F (Dual-Lumen) (24cm)

  • product-image

    DuoGlide® Short-Term Straight Dialysis Catheter Full Procedure Tray 13F (Dual-Lumen) (15cm)

  • product-image

    DuoGlide® Short-Term Curved Extension Dialysis Catheter Kit 13F (Dual-Lumen) (24cm)

  • product-image

    DuoGlide® Short-Term Curved Extension Dialysis Catheter Kit 13F (Dual-Lumen) (20cm)

  • product-image

    DuoGlide® Short-Term Curved Extension Dialysis Catheter Kit 13F (Dual-Lumen) (15cm)

  • product-image

    DuoGlide® Short-Term Curved Extension Dialysis Catheter Kit 13F (Dual-Lumen) (12.5cm)

  • product-image

    DuoGlide® Short-Term Straight Dialysis Catheter Kit 13F Basic Kit (Dual-Lumen) (20cm)

  • product-image

    DuoGlide® Short-Term Dialysis Catheter Kit 13F Basic Kit (Dual-Lumen) (15cm)

  • product-image

    DuoGlide® Short-Term Straight Dialysis Catheter Full Procedure Tray 13F (Dual-Lumen) (20cm)

  • product-image

    DuoGlide® Short-Term Straight Dialysis Catheter Kit 13F Basic Kit (Dual-Lumen) (30cm)

  • product-image

    DuoGlide® Short-Term Straight Dialysis Catheter Kit 13F Basic Kit (Dual-Lumen) (24cm)

References

Available sizes: 13 Fr.

Please consult product labels, IFU, and package inserts for any indications, contraindications, hazards, warnings, cautions, and instructions for use.

true
Resources
References

Available sizes: 13 Fr.

Please consult product labels, IFU, and package inserts for any indications, contraindications, hazards, warnings, cautions, and instructions for use.

true

Kit Components

Description Tray Kit
DuoGlide® Short-Term Dual Lumen Dialysis Catheter 1 1
Transparent Dressing 1 1
Attachable Suture Wing 1 1
Bouffant Cap 1 0
ChloraPrep™ Solution One-Step Applicator 2 0
End Cap 2 2
Drape, Body, Fenestrated 70 in. x 110 in. 1 0
StruXure™ Guidewire J-tip 70 cm x 0.89 mm (0.035 in.) 1 1
Dualator® Vessel Dilator 11-13 Fr. 1 1
Dualator® Vessel Dilator 12-14 Fr. 1 1
Filter Straw 2 0
Gloves 1 0
Gown 1 0
Introducer Needle, 18 Ga. x 7 cm (2.75 in.) 0 1
Lidocaine HCI 1%, 5 ml Ampule 1 0
Mask 2 0
Needle Holder 1 0
Safety Introducer Needle, 18 Ga. x 7 cm (2.75 in.) 1 0
Safety Needle, 22 Ga. x 4 cm (1.5 in.) 1 0
Safety Needle, 25 Ga. x 1.6 cm (0.625 in.) 1 0
Safety Scalpel 1 0
Sodium Chloride (Saline) 0.9% 10 ml Ampule 2 0
Sponges, Gauze 10 cm x 10 cm (4 in. x 4 in.) 6 0
Suture with Curved Needle 1 0
Syringe, Luer Lock, 12 ml 2 0
Syringe, Luer Slip, 6 ml 2 0
Syringe, Luer Lock, 6 ml 1 0
Reference

Available sizes: 13 Fr.

Please consult product labels, IFU, and package inserts for any indications, contraindications, hazards, warnings, cautions, and instructions for use.

BD-19967

Catheter Indications and Materials

The DuoGlide Catheters are indicated for use in attaining short-term (less than 30 days) vascular access for hemodialysis, hemoperfusion, and apheresis therapy via the jugular, subclavian or femoral vein.

The catheter is intended for short-term vascular access only and is not to be used for any purpose other than indicated.

The DuoGlide Catheter connectors for the dialysis lumens (blue and red) are made from Delrin™ polyacetal, the extension legs from Tecothane™ polyurethane, and the catheter shaft is made from thermosensitive Bodysoft®polyurethane which softens at body temperature.

The product and packaging do not contain natural rubber latex.

true

Catheter Performance

The DuoGlide Catheter flows at 400 mL/min for all lengths with low arterial/venous pressures (less than 250 mmHg). As suggested by in vitro data using a blood simulate approximating the viscosity of whole blood.

The rate of recirculation of the dialysis lumens is less than 1% on average in both the forward and reverse directions when tested in vitro1 at a flow rate of 300 mL/min with the symmetrical tip design of the 24 cm DuoGlide Short Term Dialysis Catheter. Note that recirculation in femoral catheters is likely significantly greater than in internal jugular placed catheters.2

true

Catheter and Kit Options

The DuoGlide Catheter outer diameter is 13 French. The intra lumens are large 12 gauge lumens that allow for flows of 400 mL/min.

The oval shape provides superior kink resistance compared to a round shaft catheter.

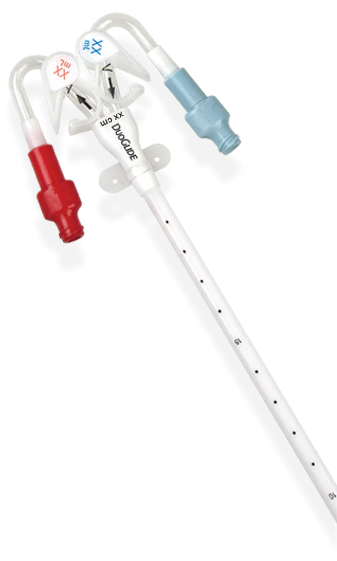

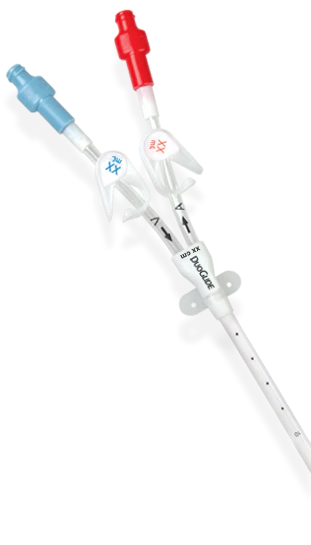

The DuoGlide Catheter is available in both straight and curved extension leg configurations.

The DuoGlide Catheter is available in 12.5 cm (curved extension configuration only), 15 cm, 20 cm, 24 cm, and 30 cm (straight extension configuration only).

The DuoGlide Catheter is available in both standard kit and full trays. Full maximal barrier precautions trays are compliant with CDC, IHI, and OSHA guidelines and are designed for bedside placement.

Transparent, rotatable wing allows for easy visualization and cleaning of exit site.

Each kit/tray includes an 11-13 Fr. Dualator® Vessel Dilator and a 12-14 Fr. Dualator® Vessel Dilator. Placers should dilate to the largest portion of each Dualator® Vessel Dilator to allow the catheter to more easily enter the tissue and vessel.

true

Placement, Maintenance and Care

The DuoGlide Catheter is intended to be inserted in the jugular, femoral, or subclavian vein as required.

WARNING: The catheter must not be left in the femoral vein longer than three days.

It is recommended that each dialysis lumen be locked with a heparin concentration per institutional protocol. The total volume of each solution must be equal to the internal volume of each lumen. The priming volume is indicated on each clamp. The heparin lock is intended to maintain patency, but should not be used in patients with thrombocytopenia.

Placement of the tip is up to the placing physician. NKF K/DOQI guidelines recommend that for acute dialysis catheters placed in the jugular or subclavian vein, the tip be placed in the caval atrial junction or the superior vena cava.

The DuoGlide Dialysis Catheter is compatible with the following agents: Povidone iodine, 0.55% sodium hypochlorite solution, chlorhexidine gluconate 4%, chlorhexidine gluconate 2% solution, dilute aqueous sodium hypochlorite, hydrogen peroxide, bacitracin zinc ointments in petrolatum bases.

WARNING: Acetone and PEG-containing ointments can cause failure of this device and should not be used with polyurethane catheters. Chlorhexidine patches or bacitracin zinc ointments are the preferred alternatives.

Yes. The StatLock Catheter Stabilization Device is compatible and can be ordered separately from the Bard Medical Division at 800-526-4455. The part number is DI0122.

Yes, the 24 cm and 30 cm lengths are recommended for femoral placements.

WARNING:The catheter must not be left in the femoral vein longer than three days.

Yes, the DuoGlide Catheter may be exchanged over a guidewire. The wire included in the kit is a 0.035 inch wire which fits through the venous lumen of the catheter.
