Overview

Simplifying Vascular Access

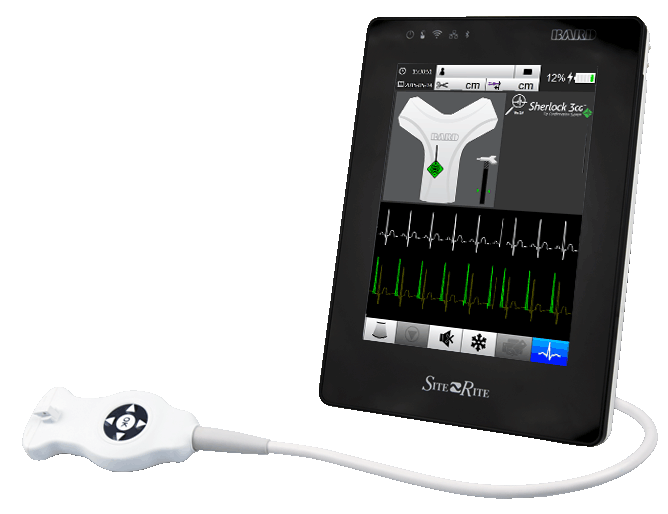

The Site-Rite™ 8 Ultrasound System with integrated SHERLOCK 3CG™ Diamond Tip Confirmation System (TCS) is designed to be simple and intuitive. Our ultrasound and imaging technologies help you visualize vessels, needle trajectory, and final tip location.

true
Features and Benefits
Making the Invisible Visible
Making the Invisible Visible

The Site~Rite™ 8 Ultrasound System with integrated SHERLOCK 3CG™ Diamond TCS is designed to simplify vascular access by allowing you to visualize PICC placements from beginning to end.

Traditional ultrasound imaging systems allow you to:
Traditional ultrasound imaging systems allow you to:

Visualize the vessel and surrounding anatomy

Visualize and measure catheter size relative to the vessel
Visualize and measure catheter size relative to the vessel
Visualize virtual catheter location during PICC placement
Visualize virtual catheter location during PICC placement

However, the Site~Rite® 8 Ultrasound System with Pinpoint™ GT Needle Technology and integrated SHERLOCK 3CG™ Diamond TCS uses traditional ultrasound imaging and a portfolio of visualization products, enabling you to:

Visualize the needle trajectory

Visualize maximum P-wave to confirm final catheter tip location

Getting to the Heart of the Matter

Using X-ray to confirm PICC tip placement wastes clinical care time, exposes patients to harmful radiation, and delays medical therapy. The SHERLOCK 3CG™ Diamond Tip Confirmation System (TCS) gets to the heart of the matter by using an adult patient’s cardiac electrical activity to position the tip of the PICC in close proximity to the cavoatrial junction

Visual catheter tip tracking

Real-time catheter tip tracking technology is used to display both catheter direction and orientation. This helps to increase placement efficiency and reduce catheter malpositions as compared to “blind” catheter placements.

Visual catheter tip confirmation

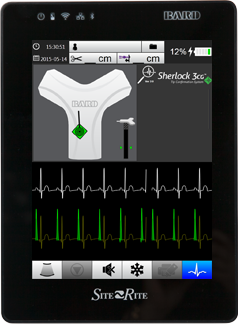

The SHERLOCK 3CG™ Diamond Tip Confirmation System (TCS) is an advanced technology that deciphers P-wave morphology and determines PICC tip position relative to the CAJ.

Simultaneous views of both catheter tip tracking and the patient’s electrocardiogram (ECG) are displayed, allowing you to navigate the catheter tip into the SVC and confirm catheter placement in proximity to the CAJ using ECG technology.

Designed to minimize the challenges of the PICC placement process by helping:

  • Locate and navigate the catheter tip in real-time
  • Confirm catheter tip placement at the CAJ in adult patients with identifiable P-waves
  • Eliminate confirmatory chest X-rays to reduce radiation exposure
  • Release the line to provide life sustaining therapy at the bedside
  • Reduce time wasted waiting for PICC tip confirmation using alternative post-placement methods

Real-Time Needle Visibility

  • Pinpoint™ GT Needle Technology on the Site~Rite™ 8 Ultrasound System is designed to improve the ultrasound-guided needle insertion experience by providing visual feedback of needle trajectory and needle tip positioning in relation to the structure of interest.

The Pinpoint™ GT Needle Technology allows you to:

  • Visually align the needle pathway, prior to insertion
  • Visualize needle tip location in relation to the target structure
  • Confirm needle intersection of the ultrasound plane
  • Maintain image integrity by eliminating the need to move the probe to find the needle
  • Place needles out-of-plane, in-plane, or oblique to the target structure

How it works

Making Virtual Needle Visibility a Reality

The Pinpoint™ GT Safety Introducer Needle

  • The Pinpoint™ GT Safety Introducer Needle emits a passive magnetic field

Sensors within the Pinpoint™ GT Linear Ultrasound Probe

  • Sensors within the Pinpoint™ GT Linear Ultrasound Probe detect the location and position of the needle’s magnetic field

Pinpoint™ GT Software on the ultrasound system

  • Pinpoint™ GT Software on the ultrasound system interprets the data to create a virtual needle image on the ultrasound display
Pinpoint GT Safety Introducer Needle Product Codes

Description

L x W Taper Thickness Product Code Qty/Box
48 inch Probe Cover Kit with 21G Pinpoint™ GT Safety Introducer Needle 48” x 6” None 1.0 mil 9770622 5
Pinpoint™ GT Safety Introducer Needle NA NA NA 9770624 5

Warning: Pinpoint™ GT Needle Technology is not qualified for use with Site~Rite™ Needle Guides. Using Site~Rite™ Needle Guides with the Pinpoint™ GT Needle Technology may result in injury to the patient.

Products & Accessories
  • product-image

    SiteRite™ 8 Ultrasound System - CE

    SiteRite™ 8 Ultrasound System - CE

  • product-image

    SiteRite™ 8 Ultrasound System - ROW

    SiteRite™ 8 Ultrasound System - ROW

  • product-image

    SiteRite™ 8 Ultrasound System - US

    SiteRite™ 8 Ultrasound System - US

  • product-image

    SiteRite™ 8 Ultrasound System - Canada/Korea

    SiteRite™ 8 Ultrasound System - Canada/Korea

  • product-image

    SiteRite™ 8 Ultrasound System - LAPAC

    SiteRite™ 8 Ultrasound System - LAPAC

  • product-image

    SiteRite™ 8 Ultrasound System - EU

    SiteRite™ 8 Ultrasound System - EU

  • product-image

    SiteRite™ 8 Ultrasound System - Brazil

    SiteRite™ 8 Ultrasound System - Brazil

  • product-image

    SiteRite™ 8 Ultrasound System - Japan

    SiteRite™ 8 Ultrasound System - Japan

  • product-image

    Connectivity for the Site-Rite™ 8 Ultrasound System

  • product-image

    Site-Rite™ 8 Portable Kit (Roller bag, kickstand, probe holder, etc.)

  • product-image

    Site-Rite™ 8 Ultrasound System with 20MM Linear Probe and Pinpoint™ GT Technology

  • product-image

    Site-Rite™ 8 Ultrasound System with 32MM Linear Probe

  • product-image

    48 inch Probe Cover Kit

  • product-image

    Intraoperative Probe Cover Kit

  • product-image

    96 inch Probe Cover Kit

  • product-image

    12 inch Probe Cover Kit

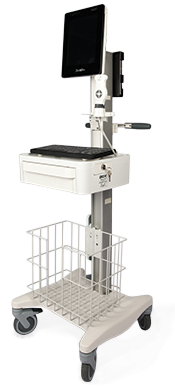

Medical Equipment Roll Stand (MER)

Designed to simplify medical equipment transportation.

The mounting plate & equipment mount supports medical equipment up to 15 lbs, including qualified Site~Rite™ Ultrasound Systems.

Please see your Ultrasound System Instructions for Use for the appropriate rollstand qualified for use with your device.

Articulating equipment mount supports medical equipment up to 8 lbs, including SHERLOCK 3CG™ TCS.

Product codes:
9770116 - Medical Equipment Roll Stand (MER)
9770109 - Laptop mounting tray (for laptop medical equipment)
9770133 - SHERLOCK 3CG™ TCS for the MER
MW260MFIC129 - Brother™ printer for the SHERLOCK 3CG™ TCS system

Resources

Needle Guide Kits

BD offers an exclusive line of needle guides designed for Site-Rite™ Ultrasound Systems to help clinicians guide needles to vascular structures at specific depths.

Pinpoint™ GT 21G Needle Guide Kit Features and Benefits

Product Codes

Description

L x W

Taper Thickness Depths (cm)0.5 1.0 1.5 2.0 2.5 3.0 3.5 Product
Code
Qty
Per
Box
21G Needle Guide Kit 48” x 6” None 1 mil       9770690 5
21G Needle Guide Kit 96” x 6” 6” to 5.5” 1 mil       9770691 5
21G Needle Guide Kit 48” x 6” None 1 mil         9770692 5
21G Needle Guide Kit 96” x 6” 6” to 5.5” 1 mil         9770693 5
  • Funnel design to aid in needle insertion
  • 0.5 – 3.5cm depth coverage
  • Guides needle to specified depth under probe
  • Available with 48" and 96" probe covers

Site~Rite® Needle Guide Kit Features and Benefits

Pinpoint GT Safety Introducer Needle Product Codes

Description L x W Taper Thickness Depths (cm)0.5 1.0 1.5 2.0 2.5 3.0 3.5 Product
Code
Qty
Per
Box
21G Needle Guide Kit 48” x 6” None 1 mil         900013B01 10
21G Needle Guide Kit 96” x 6” 6” to 3” 1.5 mil         9002196 10
20G Needle Guide Kit 48” x 6” None 1 mil       9001C0214 10
20G Needle Guide Kit 96” x 6” 6” to 3” 1.5 mil       9002096 10
18G Needle Guide Kit 48” x 6” None 1 mil         9001C0212 10
18G Needle Guide Kit 96” x 6” 6” to 3” 1.5 mil         9001896 10
  • Guides needle to specified depth under probev
  • Available in 18G, 20G, and 21G
  • Available with 48" and 96" probe covers

Warning: Pinpoint™ GT Needle Technology is not qualified for use with Site~Rite® Needle Guides. Using Site~Rite® Needle Guides with the Pinpoint™ GT Needle Technology may result in injury to the patient.

Probe Cover Kits

BD offers a complete line of sterile probe cover kits for Site-Rite™ Ultrasound System probes.

Sterile ultrasound probe covers help reduce the potential for cross-contamination and bloodstream infections by creating a sterile barrier between the ultrasound probe and the patient.

Features and Benefits

  • Designed for easy application
  • Available in 12, 48 and 96-inch lengths

Pinpoint GT Safety Introducer Needle Product Codes

Description L x W Taper Thickness Product Code Qty/Box
12 inch Probe Cover Kit 12” x 5” None 2.0 mil 9000012 10
48 inch Probe Cover Kit 48” x 6” None 1.0 mil 9001C0197 10
96 inch Probe Cover Kit 96” x 6” 6” to 3” 1.5 mil 9000096 10
Intraoperative Probe Cover Kit 12” x 5” None .0 mil 900023B01 10
