AccuCath Ace™ Intravascular Catheter

Empowering Nurses to Put Patients First.

PF10374-accucath-ace-triple

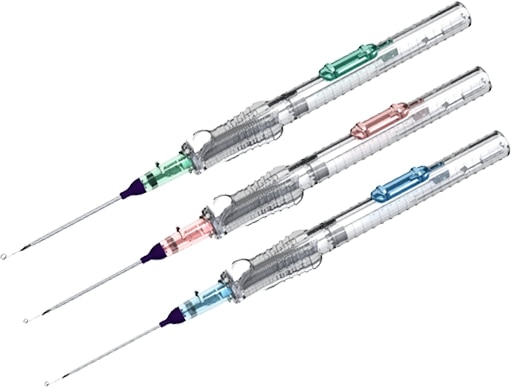

AccuCath Ace™ Intravascular Catheter

Ready to learn more? Let’s have a conversation.

Loading

Overview

When compared to conventional IV catheters, the AccuCath Ace™ Intravascular Catheter System is designed to increase first attempt success, reduce complication rates, extend dwell times, increase patient satisfaction, and lower overall costs to the provider.1

true

Feature and Benefits

Engineered to navigate tortuous vessel anatomy for atraumatic delivery, our patented AccuTip™ guidewire is designed to minimize the need for unnecessary needle advancement that may lead to vessel damage and complications.

Features

  1. AccuTip™ Nitinol Guidewire
    Coiled tip guidewire engineered to navigate tortuous vessel anatomy for atraumatic delivery. Designed to minimize the need for unnecessary needle advancement that may lead to vessel damage and complications.1
  2. Echogenic Guidewire Design
    Echogenicity of the guidewire is designed to aid in insertion when using ultrasound devices.
  3. BD Instaflash™ Needle Technology
    Incorporates a notched needle, which clinically demonstrated improved first-attempt insertion success, reducing painful hit-and-miss insertions.*2,3
  4. AccuFlash™ Secondary Flash Chamber
    Secondary blood flash chamber designed to give clinicians an additional indicator of successful cannulation/vascular access.
  5. Power Injectable
    Indicated for power injection with contrast media up to 6 mL/sec at 300 psi.
  6. Blood Control Valve
    Designed to reduce blood flow into the catheter hub after insertion until a secure luer connection is made.**
  7. Improved Flow Actuator
    Redesigned to improve flushability of catheter hub.#
  8. Needlestick Safety
    Built-in needlestick safety spring retracts at the push of a button.^
  9. Textured Grip Housing
    Designed for device control during placement.
  10. Colored Guidewire Slider
    Designed for visibility and identification of the gauge size.
* Compared to a non-notched needle
** Blood leakage from the hub may occur unless a complete luer connection is made within 10 seconds.
# As compared to AccuCath™ Intravascular Catheter.
^ If needle retraction does not occur, depress white button again. If the needle does not retract on the second attempt, carefully withdraw the needle and guidewire and contact BD.
Products & Accessories
  • product-image

    BD AccuCath Ace™ IV Catheter, Intermediate Tray, 22 G x 1.25 in.

  • product-image

    BD AccuCath Ace™ IV Catheter, Basic Tray, 22 G x 1.25 in.

  • product-image

    BD AccuCath Ace™ IV Catheter with BD Cue™ Needle Tracking System, Intermediate Tray, 20 G x 2.25 in.

  • product-image

    BD AccuCath Ace™ IV Catheter with BD Cue™ Needle Tracking System, Basic Tray, 20 G x 2.25 in.

  • product-image

    BD AccuCath Ace™ IV Catheter, Intermediate Tray, 20 G x 1.25 in.

  • product-image

    BD AccuCath Ace™ IV Catheter, Basic Tray, 20 G x 1.25 in.

  • product-image

    BD AccuCath Ace™ IV Cathete with BD Cue™ Needle Tracking System, Intermediate Tray, 18 G x 2.25 in.

  • product-image

    BD AccuCath Ace™ IV Catheter with BD Cue™ Needle Tracking System, Basic Tray, 18 G x 2.25 in.

  • product-image

    BD AccuCath Ace™ IV Catheter, Intermediate Tray, 18 G x 1.25 in.

  • product-image

    BD AccuCath Ace™ IV Catheter, Basic Tray, 18 G x 1.25 in.

Resources
References

*Idemoto et al. (2014) The AccuCath™ Intravenous Catheter System With Retractable Coiled Tip Guidewire and Conventional Peripheral Intravenous Catheters: A Prospective, Randomized, Controlled Comparison. Journal of the Association of Vascular Access, 19(2), 94-102

true

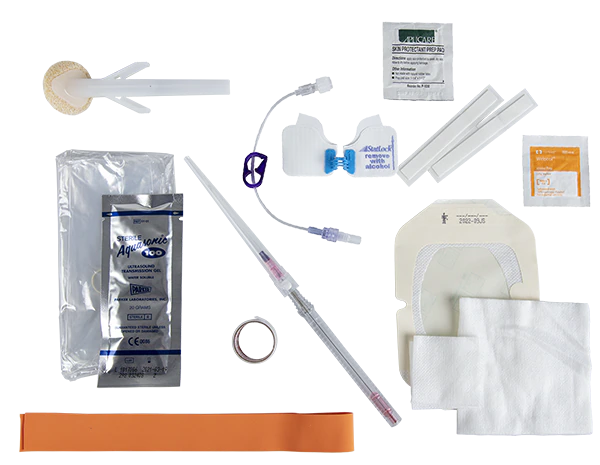

Kit Components



DescriptionBasic TrayIntermediate Tray
AccuCath Ace™ Intravascular Catheter
StatLock™ IV Ultra Stabilization Device
Skin Prep Pad
Adhesive Foam Strips
Alcohol Wipe
Tourniquet
Dressing
Surgical Tape
Gauze, 2"x 2", 2 each
Gauze, 4"x 4", 2 each
Extension Set
12" Intraoperative Probe Cover

Ready to learn more? Let’s have a conversation.

AccuCath Ace™ Intravascular Catheter
Ready to learn more? Let’s have a conversation.
Reference
  1. Idemoto BK, Rowbottom JR, Reyolds JD, Hickman Jr RL. The AccuCath intravenous catheter system with retractable coiled tip guidewire and conventional peripheral intravenous catheters: a prospective, randomized, controlled comparison. JAVA. 2014;19(2):94-102
  2. van Loon FHJ, Timmerman R, den Brok GPH, Korsten EHM, Dierick-van Daele ATM, Bouwman ARA. The impact of a notched peripheral intravenous catheter on the first attempt success rate in hospitalized adults: block-randomized trial. JVA. 2021 DOI: 10.1177/1129729821990217.
  3. Seetharam AM, Raju U, Suresh K. A randomized controlled study to compare first stick success with Instaflash technology: The FIRSST study. JVA. 2022 DOI:10.1177/11297298221080369.

BD-18718 (10/22)
