WavelinQ™ EndoAVF System

WavelinQ™ EndoAVF System for endovascular AV fistula creation



Contact Us navigation arrow
Background Image
Loading
tabs dropdown arrow
Overview
  • The WavelinQ™ EndoAVF System is indicated for the creation of an arteriovenous fistula (AVF) using concomitant ulnar artery and ulnar vein or concomitant radial artery and radial vein in patients with minimum artery and vein diameters of 2.0 mm at the fistula creation site who have chronic kidney disease and need hemodialysis
  • Enables the creation of an AVF in additional anatomic locations, not typically used for surgical AVF creation
  • The arterial* and venous access location may include upper arm access (brachial artery/vein) or venous wrist access (ulnar vein or radial vein)

*Warning: Only the brachial artery should be used for arterial access

true
Features and Benefits
WavelinQ™ EndoAVF System
WavelinQ™ EndoAVF System

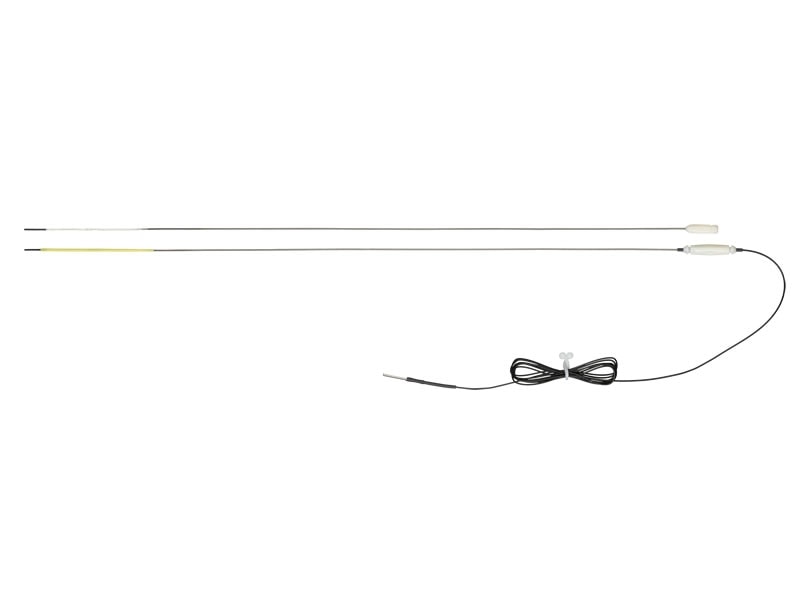

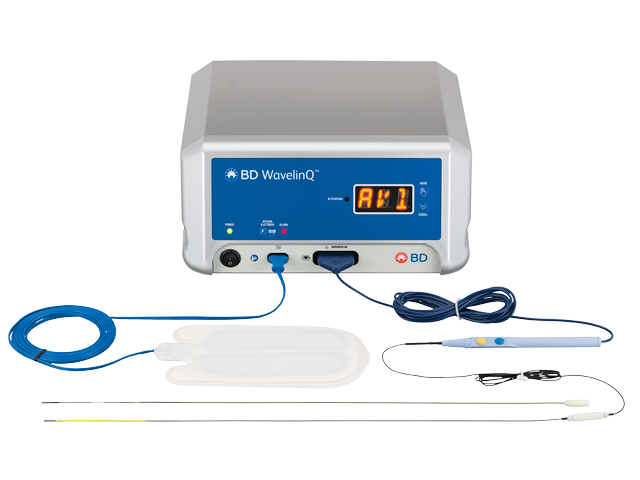

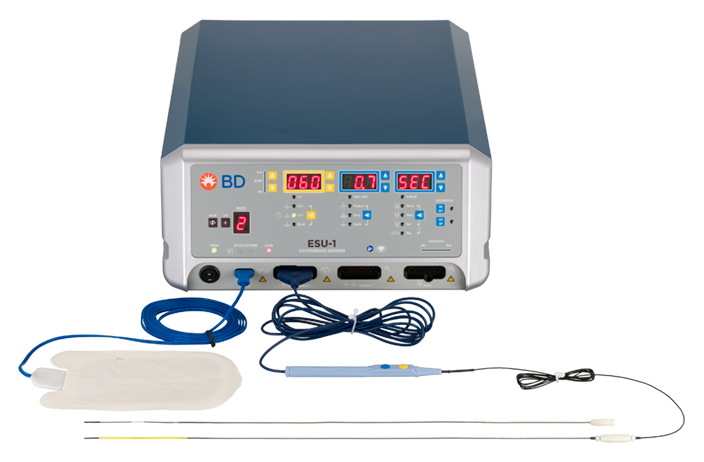

The WavelinQ™ EndoAVF System consists of two 4 French (4F) single-use, disposable, magnetic, hydrophilic coated catheters: a venous catheter and an arterial catheter. It is used with an Electrosurgical Unit (ESU) and Electrosurgical Pencil.

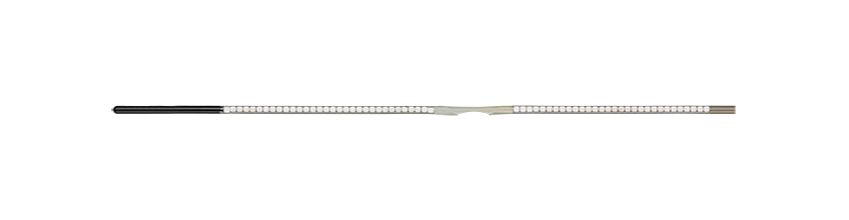

WavelinQ™ EndoAVF Arterial Catheter
WavelinQ™ EndoAVF Arterial Catheter
The WavelinQ™ EndoAVF System arterial catheter contains a backstop for receiving the electrode. When placed in proximity, the magnets contained in each catheter attract, while aligning the electrode with the backstop. Two rotational indicators, present in each catheter, are used to accurately position the catheters. The catheters may be advanced and engaged in either a parallel (same direction) or antiparallel (opposite direction) configuration.

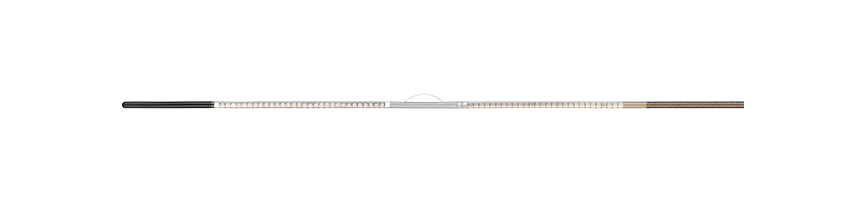

WavelinQ™ EndoAVF Venous Catheter
WavelinQ™ EndoAVF Venous Catheter

The WavelinQ™ EndoAVF System venous catheter is a flexible 4F magnetic catheter that contains a radiofrequency (RF) electrode for the delivery of RF energy, a yellow valve crosser on the distal end, and a cable and plug. The WavelinQ™ venous catheter connects via an Electrosurgical Pencil to an ESU for delivery of radiofrequency energy with standard grounding pads. RF energy can then be delivered through the electrode for cutting and/or coagulating tissue.

Products & Accessories
Resources
References

Please consult product labels and inserts for indications, contraindications, hazards, warnings, precautions and directions for use.
