PowerPICC Provena™
SOLO™ Catheters

A smaller-diameter PICC with simplified care and maintenance

Infusion Patients with Nurse

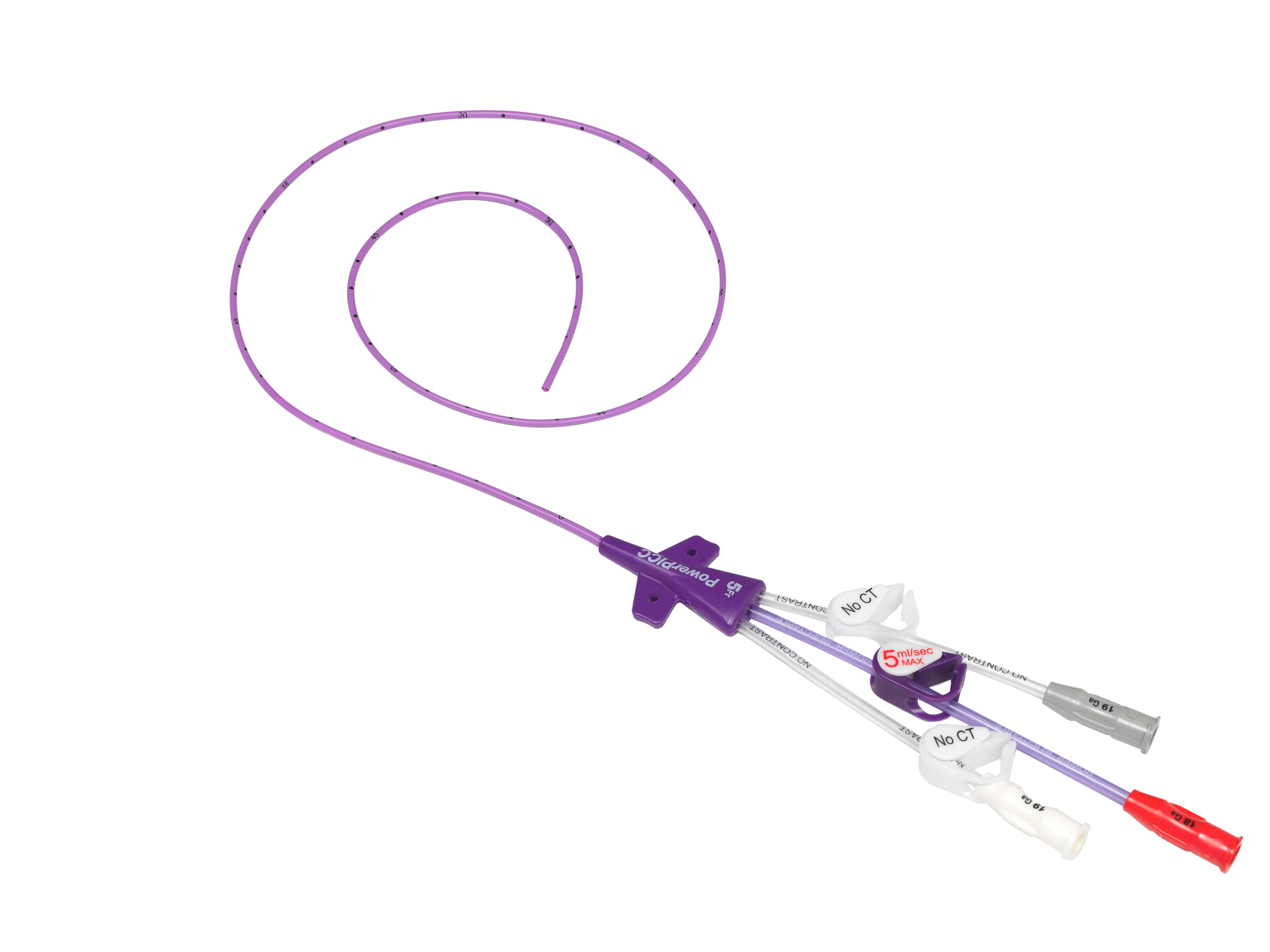

PowerPICC Provena™ SOLO™ Catheters

Ready to learn more? Let’s have a conversation.

Loading
Overview

Proactive venous solutions

The PowerPICC Provena™ Catheter with SOLO™ Valve Technology does not require the use of heparin flush solution to lock the catheter lumens, and is indicated for short or long-term peripheral access to the central venous system for intravenous therapy, blood sampling, power injection of contrast media and allows for central venous pressure monitoring.

true

Industry best practice

Supports INS recommendations

By combining advances in polyurethane material technology and manufacturing processes, BD has created smaller-diameter* PICCs that maintain high performance for infusion therapy and help align to 2024 Infusion Nursing Society (INS) guidelines recommending the use of smaller diameter catheters.1

quote-icon

“Ensure a catheter-to-vessel ratio of less than 45%”



quote-icon

Choose "the least invasive VAD with the smallest outer diameter and fewest number of lumens needed to complete the duration and prescribed therapy...”



quote-icon

"The appropriate vascular access device (VAD), peripheral or central, is selected based on the prescribed therapy or treatment regimen, anticipated duration of therapy, vascular pathway, patient's age, comorbidities, history of infusion therapy and vascular access, patient preference for VAD type and location, overall vascular health (history of difficult intravenous access, vessel, and skin health at insertion site), and ability and resources available to care for the VAD.”



*Compared to PowerPICC™ 5 French dual lumen catheter

Sherlock 3CG+™
Tip Confirmation System

Compatible with Sherlock 3CG+™ Tip Confirmation System

The PowerPICC Provena™ family of products can be paired with Sherlock 3CG+™ Tip Confirmation for bedside placement and real-time tip confirmation.

Ready to learn more?

PowerPICC Provena™ SOLO™ Catheters
Ready to learn more? Let’s have a conversation.
Reference
  1. Nickel B, Gorski L, Kleidon T, et al. Infusion Therapy Standards of Practice, 9th Edition. J Infus Nurs. 2024;47(1S Suppl 1):S1-S285. doi:10.1097/NAN.0000000000000532

BD-115764 (07/24)

Overview

A smaller alternative for your critical care needs

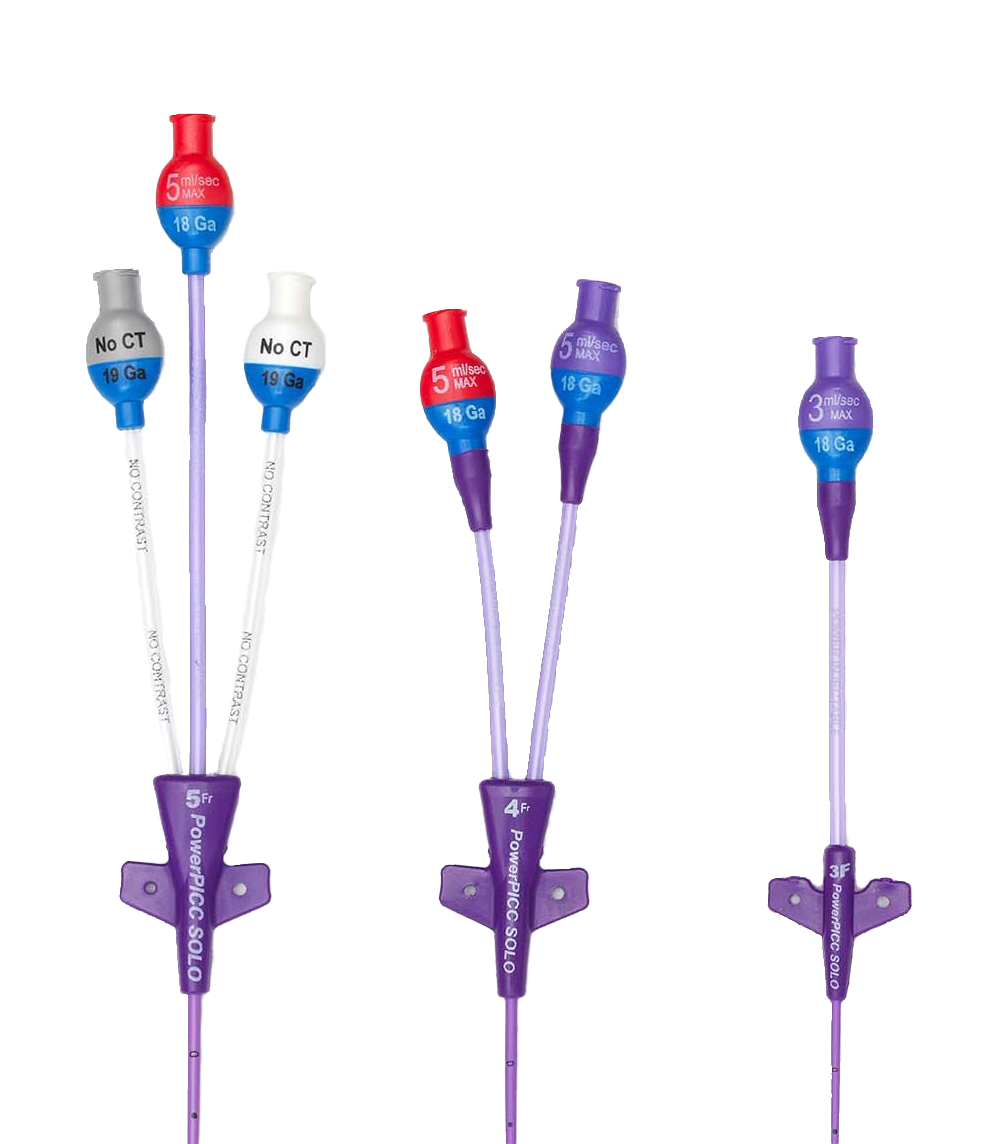

Smaller-diameter* PICCs that maintain high performance for infusion therapy by combining advances in polyurethane-material technology and manufacturing processes.

*Size comparison in relation to PowerPICC™ Catheters of the same lumen configuration.

Features & benefits

Improved kink resistance by 28%*

Compared to 5 French TL PowerPICC™ HF Catheters

Clamp-free infusion therapy

Helps eliminate confusion of clamping sequences

Strong and durable

PowerPICC™ Catheters are polyurethane catheters that help to provide strength and durability

Shortened 4 cm reverse taper design**

Features a reverse taper design and provides kink resistance

Smaller diameter catheter maintains high flow performance

Has a 14% smaller outer diameter while maintaining 98% of the intraluminal area

55 cm lengthDistally trimmable PICC
Easy-to-read ID tagsIndicate maximum injection rates and prompts users to check catheter patency

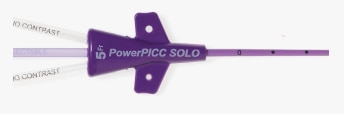

Gauge sizeClearly labeled on hub of each extension leg
Extension leg labelEasy PICC identification after catheter placement
Easy identification

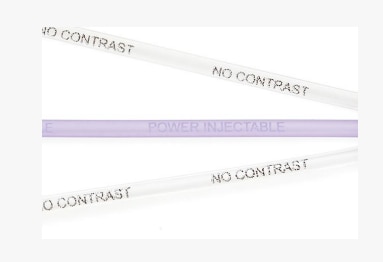

Clearly labeled to differentiate from all non-indicated power injection PICCs

Clearly labeled

Depth markings every 1 cm on catheter body

*And has equivalent kink resistance to the PowerPICC™ 5 French dual lumen catheter

**Compared to PowerPICC™ Catheters

Compared to PowerPICC™ 5 French dual lumen catheter

Related solutions

*Size comparison in relation to the PowerPICC™ Catheters of the same lumen configuration.

Ready to learn more?

PowerPICC Provena™ SOLO™ Catheters
Ready to learn more? Let’s have a conversation.
Overview

Preparation. Insertion. Dressing.

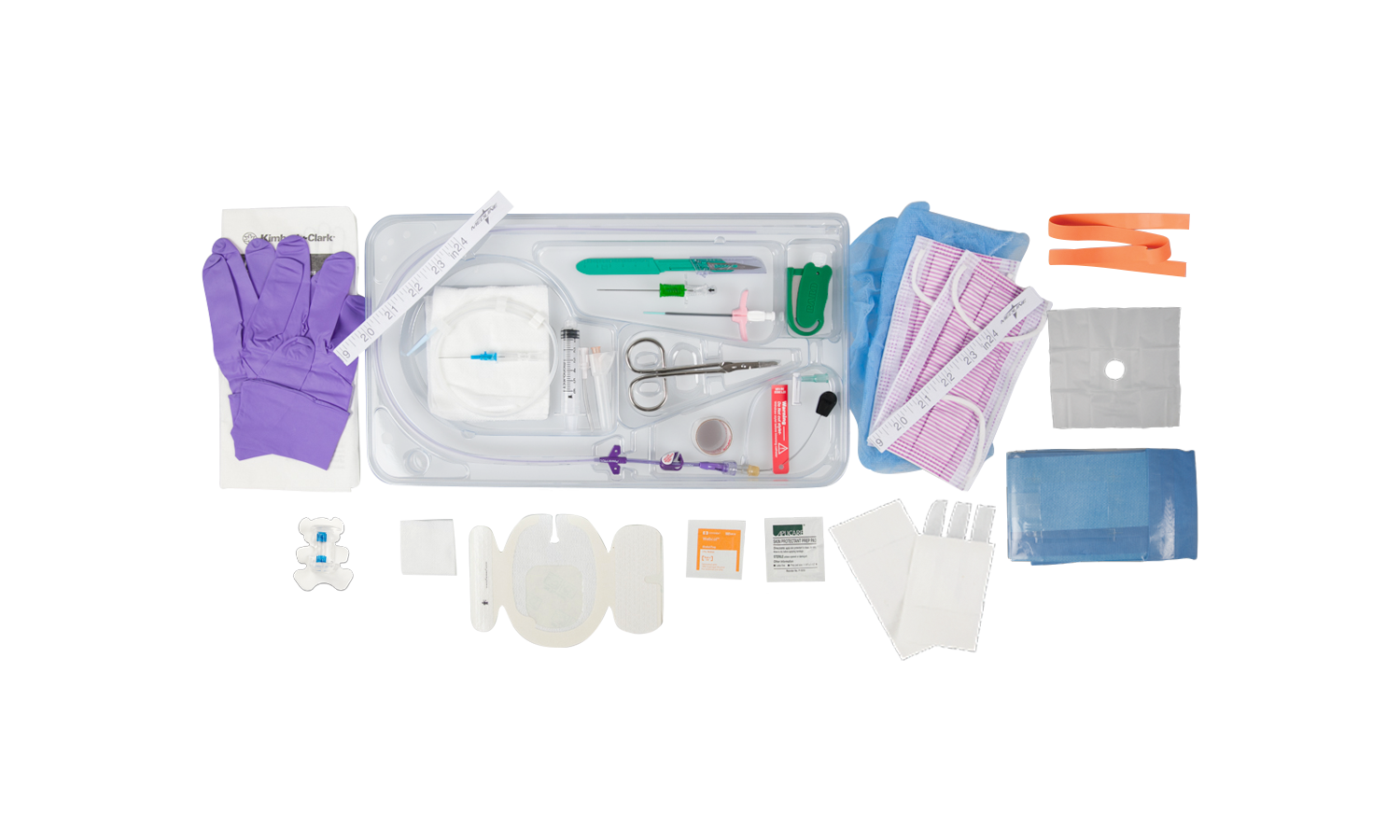

Designed to provide a more convenient setup and insertion, the small patient tray includes the necessary components for preparation, insertion and dressing with PICC insertions in small patients.

Features & benefits

A comprehensive solution for small patients

Complete vascular access solution for small patients
Combines 3 French single lumen and 4 French dual lumen PowerPICC Provena™ Catheters with a comprehensive procedural tray

Consistent with industry guidelines
The full procedural tray includes maximal barrier components helping to enable clinicians to meet clinical guidelines

Kit components

Preparation, insertion and dressing in one kit

Preparation

Insertion

Dressing

Catheter trimming device

  • Enclosed blade to provide safety from exposed sharps
  • Viewing window to visualize catheter trimming mark
  • Indications: The catheter trimming device is a single procedure use device for trimming catheters with sizes ranging from 2 French to 6 French

Nitinol Flexura™ Guidewire

  • 40 cm long
  • Marked every centimeter to allow clinicians to visualize amount of guidewire in the patient*



Securement strips

  • Pre-cut
  • 1.5" length
  • 3 per card (1 card per lumen)

Tourniquet

  • 18" length x 1/4" width
  • Textured material that provides a non-slip surface

IV catheter

  • 22 G 1"

StatLock™ PICC Plus Pediatric Stabilization Device

  • Teddy bear
  • Foam, sliding posts indications. The StatLock™ Stabilization Device is compatible for medical tubes and catheters

Clear drape

  • Square 15" x 15"
  • 2 3/8" round fenestration to create a small sterile area for PICC insertion

Non-woven gauze

  • 2" x 2", 4" x 4"

Transparent dressing

  • 3M™ Tegaderm™ IV advanced securement dressing
  • Dressing dimensions: 3.5" x 4.5" overall with 2.25" x 2.5" window

Max barrier drape

  • 73" width x 112.5" length
  • Two 4" x 5" fenestrations that accommodate small patient PICC placements for either arm



SecureLoc™ Introducer Needle

  • 21 G x 5 cm






Microintroducer

  • GolNeedleTech™ branded
  • 5 cm long to accommodate small patient size


*Compared to 50 cm Fluxura™ Wire
