Alaris™ Pump Module Administration Sets

Alaris™ Pump infusion sets include various configurations and a feature that integrates our SmartSite™ needle-free valve above or below the pump module.

Contact Us navigation arrow
Background Image
Loading
tabs dropdown arrow
Overview

Alaris™ Pump infusion sets include various configurations and feature that integrate our SmartSite™ needle-free valve above or below the 8100 pump module. Our portfolio offers a wide variety of features including stopcocks, manifolds, 0.2, 1.2, 15, 180 and 200 micron filters, syringe adapter sets, and amber, yellow stripe & polyethylene lined tubing.

true
Features and Benefits
Safety features

The sets feature a safety clamp that helps prevent accidental free flow.

A simple, complete hazardous drug safety system

Specialized pump infusion sets with various features including integrated bag access port, bonded Texium™ closed male luer, in-line filters, and polyethylene lined tubing.

Pump as gravity

The pumps sets can easily be used for gravity. They are available in drop factors of 10, 15, 20 and 60 drops per mL.

Vented/Non-vented design

Most sets are designed for use with a bag or bottle.

Products & Accessories
  • product-image

    BD Alaris™ Pump Module administration set

    Alaris™ Pump Module set Check valve slide clamp(s) 3 VersaSafe™ split septum port(s) 6", 63", 83" (1 above pumping segment and 2 below) from 2-piece male luer lock. Not made with DEHP. 20 drop L: 107 in L: 271 cm PV: 24 mL fluid path sterile.

  • product-image

    BD Alaris™ Pump Module administration set

    Alaris™ Pump Module set Check valve roller clamp(s) 2 VersaSafe™ split septum port(s) 6", 85" (1 above pumping segment and 1 below) from 2-piece male luer lock. Not made with DEHP. 20 drop L: 118 in L: 300 cm PV: 26 mL fluid path sterile.

  • product-image

    BD Alaris™ Pump Module administration set

    Alaris™ Pump Module set Check valve roller clamp(s) 2 SmartSite™ needle-free valve(s) 81", 6" from Texium™ closed male luer. Not made with DEHP. 20 drop L: 117 in L: 298 cm PV: 25 mL fluid path sterile.

  • product-default-image

    BD Alaris™ LVP 20D LOW SORB

  • product-default-image

    BD Alaris™ LVP SS BAG 20D 2SS CV

  • product-default-image

    BD Alaris™ LVP BUR 20D 3SS

  • product-default-image

    BD Alaris™ LVP 20D DEHP 3SS 2G-3WSPK CV

  • product-default-image

    BD Alaris™ LVP BLD180M 15D

    Alaris Pump Module Set Non-Vented/Blunt Short Spike Blood Set 180 Micron Filter Roller, 2 Slide Clamp(s) 2-piece Male Luer Lock. DEHP is not part of the material formulation. 15 Drop L: 122 in L: 310 cm PV: 33 mL Fluid Path Sterile

  • product-default-image

    BD Alaris™ LVP 20D DEHP 15M

  • product-image

    BD Alaris™ Pump Module administration set

    Alaris™ Pump Module set back check valve 0.2 micron filter (1.72 sq. in pes low protein binding) roller, pinch clamp(s) 3 SmartSite™ Y-site(s) 6,18,80 from 2-piece male luer lock. 20 drop L: 117 in L: 297 cm PV: 28 mL fluid path sterile.

  • product-image

    Alaris™ Pump Module Set

    Alaris™ Pump Module set 2 back check valves roller, slide, pinch clamp(s) 3 SmartSite™ Y-site(s) 6,41,89 from 2-piece male luer lock. 20 drop L: 126 in L: 319 cm PV: 27 mL fluid path sterile.

  • product-image

    BD Alaris™ LVP 20D

    Alaris™ Pump Module set Roller Clamp(s) 2-piece Male Luer Lock. Not Made with DEHP. 20 Drop L: 109 in L: 277 cm PV: 23 mL Fluid Path Sterile

  • product-image

    BD Alaris™ Pump Module administration set

    Alaris™ Pump Module set back check valve roller clamp(s) 2 SmartSite™ Y-site(s) 6, 81 from 2-piece male luer lock. 20 drop L: 117 in L: 297 cm PV: 25 mL fluid path sterile.

  • product-image

    BD Alaris™ Pump Module administration set

    Alaris™ Pump Module set Needle-free valve bag access port roller clamp(s) 2-piece male luer lock. Not made with DEHP. 20 drop L: 118 in L: 299 cm PV: 24 mL fluid path sterile.

  • product-image

    BD Alaris™ LVP SS BAG 20D LOW SORB 3SS CV

    Alaris™ Pump Module set Non-vented needle-free valve bag access port low sorbing check valve roller, pinch clamp(s) 3 SmartSite™ needle-free valve(s) 6", 74", 96" (1 above pumping segment and 2 below) from 2-piece male luer lock. Not made with DEHP. 20 drop L: 127 in L: 323 cm PV: 25 mL fluid path sterile.

  • product-image

    BD Alaris™ LVP SS BAG 20D TEX

    Non-vented needle-free valve bag access port roller clamp(s) bonded Texium™ closed male luer. Not made with DEHP. 20 drop L: 107 in L: 272 cm PV: 24 mL fluid path sterile.

  • product-image

    BD Alaris™ LVP 10D 3SS CV

    Back Check Valve Roller Clamp(s) 3 SmartSite™ Y-site(s) 6", 36", 87" (1 above pumping segment and 2 below) from 2-piece Male Luer Lock. DEHP is not part of the material formulation. 10 Drop L: 117 in L: 296 cm PV: 25 mL Fluid Path Sterile

  • product-default-image

    BD Alaris™ LVP 20D DEHP AMBER SS 0.2M

  • product-image

    BD Alaris™ LVP 10D 3SS 2CV

    BD Alaris™ Pump Module set 2 Back Check Valves Roller Clamp(s) 3 SmartSite™ Y-site(s) 6", 42", 92" (1 above pumping segment and 2 below) from 2-piece Male Luer Lock. DEHP is not part of the material formulation. 10 Drop L: 111 in L: 282 cm PV: 25mL Fluid Path Sterile.

  • product-image

    BD Alaris™ LVP 20D 3SS TEX CV

    BD Alaris™ Pump Module set Check valve roller, pinch clamp(s) 3 SmartSite™ needle-free valve(s) 96", 74", 6" from Texium™ closed male luer. Not made with DEHP. 20 drop L: 126 in L: 321 cm PV: 26 mL fluid path sterile.

  • product-default-image

    BD Alaris™ LVP SS BAG 20D LOW SORB TEX

  • product-image

    BD Alaris™ Pump Module administration set

    Alaris™ Pump Module set Flow controller roller, slide clamp(s) 2 SmartSite™ Y-site(s) 2-piece male luer lock. 20 drop L: 292 cm PV: 24 mL fluid path sterile.

  • product-image

    BD Alaris™ Pump Module administration set

    Alaris™ Pump Module set Syringe Adapter Microbore Slide Clamp(s) 2-piece Male Luer Lock. L: 80 in L: 203 cm PV: 4 mL Fluid Path Sterile

  • product-image

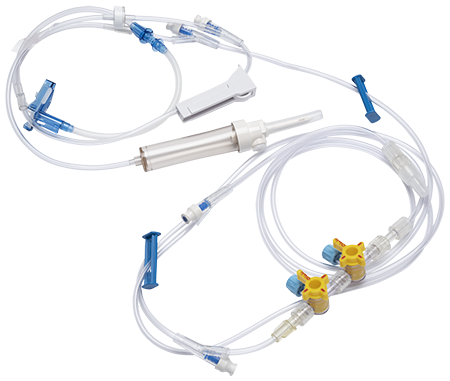

    BD Alaris™ LVP 10D 3SS 2G-4WSPK CV

    Back Check Valve Roller, 2 Slide Clamp(s) 2 Ganged 4-way Stopcocks 2 Male Luers 3 SmartSite™ Y-site(s) 6", 38", and 105" (1 above pumping segment and 2 below) from 2-piece Male Luer Lock. DEHP is not part of the material formulation. 10 Drop L: 125 in L: 318 cm PV: 22 mL Fluid Path Sterile

  • product-image

    BD Alaris™ LVP 20D 3SS 2CV

    Alaris™ Pump Module Set Back Check Valve Roller, Slide, 2 Pinch Clamp(s) 3-way Stopcock (OFF Indicator) 3 Port Manifold (3 One Way Valves) 2 Female Luers 3 Male Luers 5 SmartSite™ Y-site(s) 6", 21", 39", 103", 125" (1 above pumping segment and 4 below) from 2-piece Male Luer Lock. DEHP is not part of the material formulation. 20 Drop L: 159 in L: 403 cm PV: 31 mL Fluid Path Sterile

  • product-image

    BD Alaris™ LVP VSA SMBORE

    BD Alaris™ Pump Module set Syringe Adapter Smallbore Slide Clamp(s) 2-piece Male Luer Lock. Not Made with DEHP. L: 82 in L: 208 cm PV: 4 mL Fluid Path Sterile

  • product-image

    BD Alaris™ Pump Module administration set

    Alaris™ Pump Module set Roller Clamp(s) 2-piece Male Luer Lock. 20 Drop L: 109 in L: 277 cm PV: 23 mL Fluid Path Sterile

  • product-image

    BD Alaris™ LVP SS BAG 20D LOW SORB TEX

    Needle-free valve bag access port low sorbing roller clamp(s) bonded Texium™ closed male luer. Not made with DEHP. 20 drop L: 118 in L: 300 cm PV: 24 mL fluid path sterile.

  • product-image

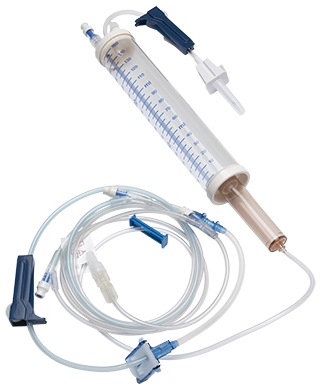

    BD Alaris™ LVP BUR 20D LOW SORB SMBORE SS 0.2M

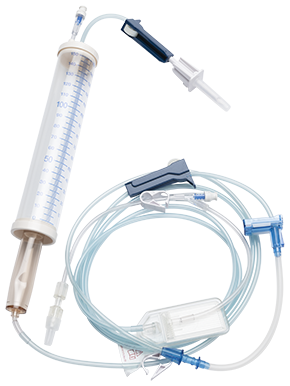

    Alaris™ Pump Module Set 150mL Burette (SmartSite™) Smallbore Tubing Segments Low Sorbing (PE Lined) Segments 0.2 Micron Filter (1.72 sq. in Low Protein Binding) 2 Roller, 2 Pinch Clamp(s) 1 SmartSite™ Y-site(s) 6" (below pumping segment) from 2-piece Male Luer Lock. DEHP is not part of the material formulation. 20 Drop L: 125 in L: 317 cm PV: 26 mL Fluid Path Sterile

  • product-image

    Alaris™ Pump Module Set

    Alaris™ Pump Module set Roller clamp(s) 2-piece male luer lock. 20 drop L: 109 in L: 276 cm PV: 24 mL fluid path sterile.

  • product-image

    BD Alaris™ LVP SS BAG 20D LOW SORB TEX

    Alaris™ Pump Module set Non-vented needle-free valve bag access port low sorbing roller clamp(s) Texium™ closed male luer. Not made with DEHP. 20 drop L: 47 in L: 120 cm PV: 14 mL fluid path sterile.

  • product-image

    BD Alaris™ LVP SS BAG 20D TEX

    Non-vented needle-free valve bag access port low sorbing segments roller clamp(s) bonded Texium™ closed male luer. DEHP is not part of the material formulation. 20 drop L: 45 in L: 115 cm PV: 14 mL fluid path sterile.

  • product-image

    BD Alaris™ Pump Module administration set

    Alaris™ Pump Module set back check valve 0.2 micron filter (1.72 sq. in pes low protein binding) roller, slide clamp(s) 1 SmartSite™ Y-site(s) 6 from 2-piece male luer lock. 20 drop L: 115 in L: 292 cm PV: 27 mL fluid path sterile.

  • product-image

    BD Alaris™ LVP SS BAG 20D LOW SORB

    Non-Vented SmartSite™ bag access Low Sorbing (PE Lined) roller clamp(s) 2-piece male luer lock. Not made with DEHP. 20 drop L: 45 in L: 115 cm PV: 14 mL fluid path sterile.

  • product-image

    BD Alaris™ Pump Module administration set

    Alaris™ Pump Module set Non-Vented Blood Set 180 Micron Filter Roller, 2 Slide Clamp(s) 1 SmartSite™ needle-free valve(s) 65" (below pumping segment) from 2-piece Male Luer Lock. 15 Drop L: 122 in L: 309 cm PV: 35 mL Fluid Path Sterile

  • product-image

    BD Alaris™ Pump Module administration set

    Alaris™ Pump Module set Roller clamp(s) 1 SmartSite™ Y-site(s) 6 from 2-piece male luer lock. 20 drop L: 108 in L: 274 cm PV: 23 mL fluid path sterile.

  • product-image

    BD Alaris™ Pump Module administration set

    Alaris™ Pump Module set back check valve roller, pinch clamp(s) 3 SmartSite™ Y-site(s) 6,74,90 from 2-piece male luer lock. 20 drop L: 126 in L: 320 cm PV: 27 mL fluid path sterile.

  • product-image

    BD Alaris™ LVP 20D 1.2M

    Alaris™ Pump Module Set 1.2 Micron Filter (1.72 sq. in Low Protein Binding) Roller, Pinch Clamp(s) 2-piece Male Luer Lock. DEHP is not part of the material formulation. 20 Drop L: 122 in L: 309 cm PV: 27 mL Fluid Path Sterile
